Manufacturer Part Number:

Q6004L3

OneIC Part Number:
206-Q6004L3
Manufacturer:

Littelfuse

microsemi
Description:
Triacs 600V 4A 10-10-10mA
Customer Reference:
Datasheet:

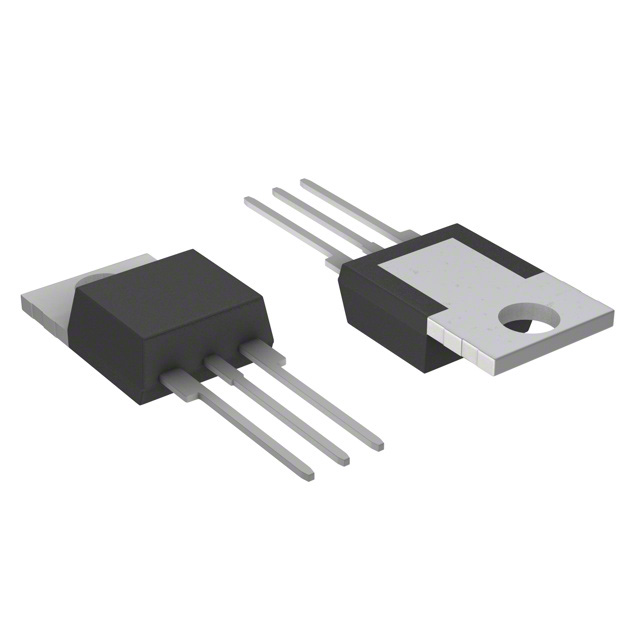

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type Description
Repetitive Peak Reverse Voltage 600(Min)
Mounting Through Hole
Surge Current Rating 55
Maximum Gate Trigger Voltage 2
Package Width 4.78(Max)
PCB 3
Type TRIAC
Peak On-State Voltage 1.6
EU RoHS Compliant
Maximum Holding Current 20
Repetitive Peak Forward Blocking Voltage 600(Min)
Minimum Operating Temperature -40
Supplier Package TO-220AB Isolated
Standard Package Name TO-220
Maximum Operating Temperature 125
Package Length 10.67(Max)
Operating Junction Temperature -40 to 125
Pin Count 3
Maximum Gate Trigger Current 10
Package Height 9.4(Max)
Repetitive Peak Off-State Current 0.05
Tab Tab
Lead Shape Through Hole
Unit Pack 500
MOQ 500
rohs Lead free / RoHS Compliant
Factory Pack Quantity 500
Product Category Triacs
Rated Repetitive Off-State Voltage VDRM 600 V
Gate Trigger Current 10 mA, 25 mA
Off-State Leakage Current @ VDRM IDRM 50 uA
Series Qxx04xx
On-State RMS Current - It RMS 4 A
Mounting Style Through Hole
Non Repetitive On-State Current 46 A, 55 A
Packaging Bulk
Minimum Operating Temperature - 40 C
Package / Case TO-220-3
On-State Voltage 1.6 V
Maximum Operating Temperature + 125 C
RoHS RoHS Compliant
Gate Trigger Current (Max) 10 mA
Gate Trigger Voltage (Max) 2 V
Operating Temp Range -40C to 125C
Package Type TO-220AB Isolated
Peak Surge on-state current (Max) 55 A
Peak Repeat Off Current 0.05
Repetitive Peak off-state volt 600 V
Off-State Voltage 600 V
Operating Temperature Classification Automotive
On State Voltage(max) 1.6 V
Hold Current 20 mA
Rad Hardened No
Gate Trigger Voltage 2 V
电流 - 栅极触发 (Igt)(最大值) 10mA
电压 - 断态 600V
电流 - 不重复浪涌 50、60Hz (Itsm) 46A, 55A
电压 - 栅极触发 (Vgt)(最大值) 1.3V
配置 Single
电流 - 通态 (It (RMS))(最大值) 4A
封装/外壳 TO-220-3 Isolated Tab
电流 - 保持 (Ih)(最大值) 20mA
三端双向可控硅类型 Logic - Sensitive Gate
Holding Current Ih Max 20 mA
Brand Littelfuse
Gate Trigger Voltage - Vgt 2 V
Gate Trigger Current - Igt 10 mA, 25 mA
Current Rating 4 A

Documents & Media

RESOURCE TYPE LINK
Datasheets Lz004zzzz, Qz004zzzz Series
