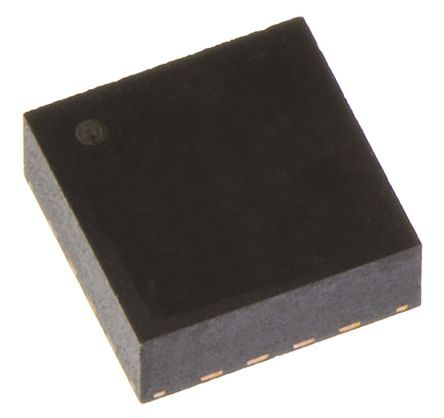

Thumbnail 16-LFCSP, CP-16-19 Exposed Pad

Manufacturer Part Number:

AD8363ACPZ-R7

OneIC Part Number:

1-AD8363ACPZ-R7

Manufacturer:

analog devices

Description:

True RMS Power Detector 16-Pin LFCSP EP T/R

Customer Reference:

Datasheet:

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	16LFCSP EP
Operating Temperature	-40 to 125 °C
Standard Package	Tape & Reel
Standard Package Name	LFCSP
EU RoHS	Compliant
Maximum Operating Temperature	125
Package Height	0.83
Mounting	Surface Mount
Packaging	Tape and Reel
PCB	16
Package Width	4
Supplier Package	LFCSP EP
Package Length	4
Minimum Operating Temperature	-40
Pin Count	16
Lead Shape	No Lead
Accuracy	±0.5dB
RF Type	Cellular, GSM, CDMA, W-CDMA
Input Range	-50dBm ~ 0dBm
Current - Supply	60mA
Voltage - Supply	4.5 V ~ 5.5 V
Frequency	50Hz ~ 6GHz
Package/Case	16-VQFN Exposed Pad, CSP
rohs	Lead free / RoHS Compliant
Other Names	AD8363ACPZ-R7CT
Dimensions	4 x 4 x 0.83mm
Height	0.83mm
Length	4mm
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Package Type	LFCSP EP
Width	4mm
Screening Level	Automotive
Rad Hardened	No
Frequency Min	:50Hz
Frequency Max	:6GHz
Sensitivity	:0.04mV/°C
RF IC Case Style	:LFCSP
No. of Pins	:16
Supply Voltage Min	:4.5V
Supply Voltage Max	:5.5V
MSL	:-
Weight (kg)	0
Tariff No.	85423990

Documents & Media

RESOURCE TYPE	LINK
Datasheets	AD8363
