Manufacturer Part Number:

AD9959BCPZ

OneIC Part Number:

1-AD9959BCPZ

Manufacturer:

analog devices

Description:

Direct Digital Synthesizer 500MHz 4-DAC 10-Bit Serial 56-Pin LFCSP EP Tray

Customer Reference:

Datasheet:

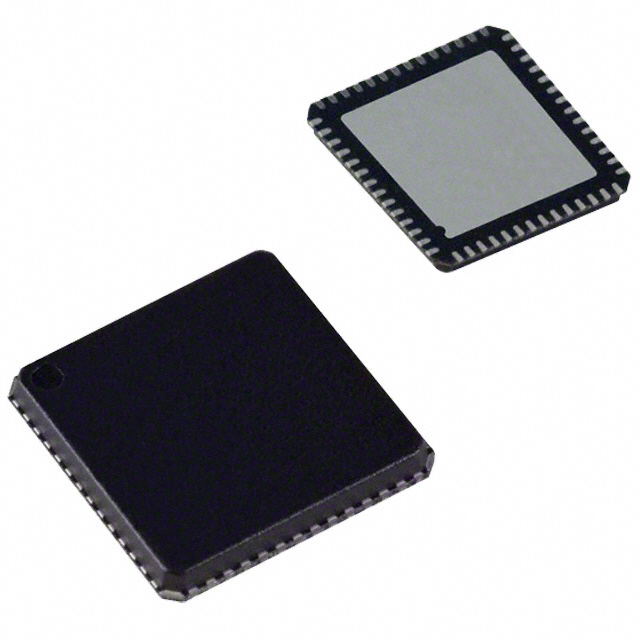

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Supplier Package	LFCSP EP
Maximum Input Frequency	500 MHz
Resolution	10 Bit
Tuning Word Width	32 Bit
Typical Operating Supply Voltage	1.8 V
Minimum Operating Supply Voltage	1.71 V
Maximum Operating Supply Voltage	1.89 V
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	85 °C
Mounting	Surface Mount
Standard Package	Trays
Number of DACs	4
Number of Outputs	4
Package Width	8
PCB	56
Maximum Power Dissipation	680
Digital Interface Type	Serial (2-Wire, 3-Wire, SPI)
Typical Operating Supply Voltage	1.8
EU RoHS	Compliant
Maximum Supply Current	185
Tuning Word Width	32
Output Type	Current
Typical Output Current	10
Minimum Operating Temperature	-40
Standard Package Name	LFCSP
Maximum Operating Temperature	85
Package Length	8
Minimum Operating Supply Voltage	1.71
Pin Count	56
Digital Supply Support	Yes
Package Height	0.83
Internal Frequency Multiplier	Yes
Packaging	Tray
Maximum Operating Supply Voltage	1.89
Resolution	10
Maximum Input Frequency	500
Lead Shape	No Lead
Master fclk	500MHz
Mounting Type	Surface Mount
Resolution (Bits)	10 b
Supplier Device Package	56-LFCSP-VQ (8x8)
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	1.71 V ~ 1.96 V
Tuning Word Width (Bits)	32 b
Package/Case	56-VFQFN Exposed Pad, CSP
rohs	Lead free / RoHS Compliant
Category	Digital Synthesizer
Conversion Rate	500Msps
Dimensions	8 x 8 x 0.83mm
Height	0.83mm
Length	8mm
Width	8mm
Operating Supply Voltage	1.8 V
Function	DDS
Factory Pack Quantity	260
Series	AD9959
Mounting Style	SMD/SMT
Package / Case	LFCSP-56
Number of Converters	4
RoHS	RoHS Compliant
Supply Voltage Min	:1.8V
Supply Voltage Max	:3.3V
Supply Current	:160mA
Digital IC Case Style	:CSP
No. of Pins	:56
Operating Temperature Min	:-40°C
Operating Temperature Max	:85°C
MSL	:MSL 3 - 168 hours
SVHC	:No SVHC (20-Jun-2013)
A/D / D/A Features	:32-bit frequency tuning resolution, Serial I/O Port(SPI)
Data Interface	:Serial
IC Case Style	:CSP
IC Generic Number	:9959
Input Channel Type	:Serial
Input Type	:Serial
Linearity Error ADC / DAC +	:0.5LSB
Linearity Error ADC / DAC -	:0.5LSB
No. of Channels	:4
No. of DACs	:4
Operating Temperature Range	:-40°C to +85°C
Sampling Rate	:500MSPS
Supply Voltage Range - Analogue	:1.71V to 1.89V
Supply Voltage Range - Digital	:1.71V to 1.89V, 3.135V to 3.465V
Termination Type	:SMD
Weight (kg)	0.000076
Tariff No.	85423190

Documents & Media

RESOURCE TYPE	LINK
Datasheets	AD9959
