Manufacturer Part Number:

ADL5500ACBZ-P7

OneIC Part Number:

1-ADL5500ACBZ-P7

Manufacturer:

analog devices

Description:

Power Detector 4-Pin WLCSP

Customer Reference:

Datasheet:

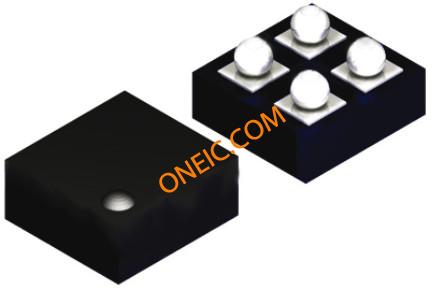

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package	4WLCSP
Mounting	Surface Mount
Pin Count	4
Family	ADL5500
Operating Temperature	-40 to 85 °C
Standard Package	Tape & Reel
Standard Package Name	BGA
EU RoHS	Compliant
Maximum Operating Temperature	85
Supplier Package	WLCSP
Minimum Operating Temperature	-40
Accuracy	± 0.1dB
Packaging	Tape & Reel (TR)
RF Type	Cellular, CDMA2000, W-CDMA
Input Range	-18.5dBm ~ 6dBm
Current - Supply	1mA
Voltage - Supply	2.7 V ~ 5.5 V
Frequency	100MHz ~ 6GHz
Package/Case	4-WFBGA, WLCSP
rohs	Lead free / RoHS Compliant
Other Names	ADL5500ACBZ-P7CT
Dimensions	1.01 x 1.01 x 0.381mm
Height	0.381mm
Length	1.01mm
Maximum Frequency	6GHz
Maximum Operating Supply Voltage	5.5 V
Maximum Operating Temperature	+85 °C
Maximum Supply Current	1.1 mA
Minimum Operating Supply Voltage	2.7 V
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Number of Elements per Chip	1
Package Type	WLCSP
Width	1.01mm
Frequency Min	:100MHz
Frequency Max	:6GHz
Sensitivity	:0.0032dB/°C
RF IC Case Style	:WLCSP
No. of Pins	:4
Supply Voltage Min	:2.7V
Supply Voltage Max	:5.5V
MSL	:-
Weight (kg)	0
Tariff No.	85423990

Documents & Media

RESOURCE TYPE	LINK
Datasheets	ADL5500

In-Stock:

Can ship immediately

QUANTITY

All prices are in USD

Price

QTY	UNIT PRICE	EXT PRICE
