analog devices

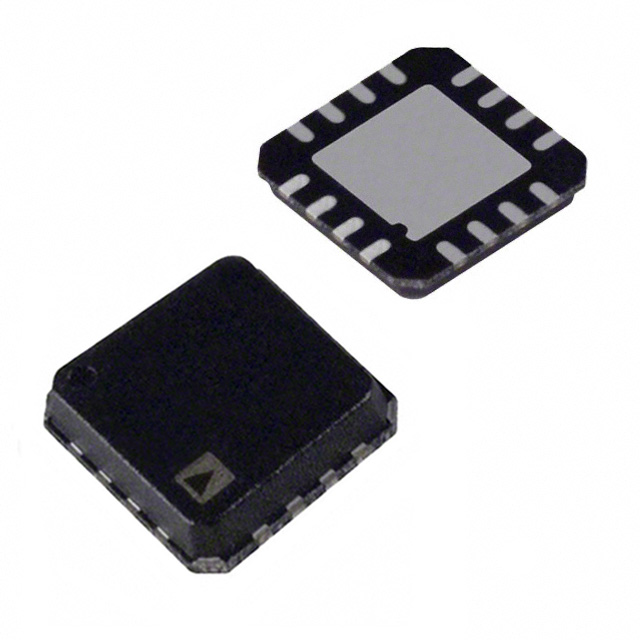

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 16LFCSP EP |
| Acceleration | ±3 g |
| Axis Type | Triple |
| Operating Supply Voltage | 1.8 to 3.6 V |
| Device Sensitivity Range | 270 to 330 mV/g |
| Mounting | Surface Mount |
| Operating Temperature | -40 to 85 °C |
| Typical Operating Supply Voltage | 2.5|3.3 |
| Standard Package Name | LFCSP |
| EU RoHS | Compliant |
| Minimum Operating Temperature | -40 |
| Minimum Operating Supply Voltage | 1.8 |
| Packaging | Tape and Reel |
| Acceleration | ±3 |
| Supplier Package | LFCSP EP |
| Maximum Operating Temperature | 85 |
| Maximum Operating Supply Voltage | 3.6 |
| Pin Count | 16 |
| Lead Shape | No Lead |
| Mounting Type | Surface Mount |
| Sensitivity | 300mV/g |
| Supplier Device Package | 16-LFCSP-LQ (4x4) |
| Output Type | Analog |
| Bandwidth | 1.6kHz - XY, 550Hz - Z |
| Voltage - Supply | 1.8 V ~ 3.6 V |
| Standard Package | 1,000 |
| Acceleration Range | ±3.6g |
| Axis | X, Y, Z |
| Package/Case | 16-LQFN Exposed Pad, CSP |
| rohs | Lead free / RoHS Compliant |
| Other Names | ADXL335BCPZ-RL7CT |
| Mounting Style | SMD/SMT |
| Sensing Axis | Triple |
| Series | ADXL335 |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Package / Case | 4 mm x 4 mm x 1.45 mm |
| Supply Current | 350 uA |
| Supply Voltage - Min | 1.8 V |
| Maximum Operating Temperature | + 85 C |
| RoHS | RoHS Compliant By Exemption |
| 供应商器件封装 | 16-LFCSP-LQ (4x4) |
| 加速度范围 | ±3.6g |
| 电压 - 电源 | 1.8 V ~ 3.6 V |
| 轴 | X, Y, Z |
| 带宽 | 1.6kHz - XY, 550Hz - Z |
| 灵敏度 | 300mV/g |
| 装配类型 | Surface Mount |
| 输出类型 | Analog |
| 封装/外壳 | 16-LQFN Exposed Pad, CSP |
| 最高频率响应 | 1600Hz |
| Board Level Components | Y |
| 传感器范围 | ±3g |
| 最高工作温度 | +85 °C |
| 轴数目 | 3 |
| 引脚数目 | 16 |
| 安装类型 | 表面贴装 |
| 技术 | 模拟 |
| 最低工作温度 | -40 °C |
| 高度 | 1.45mm |
| 频率响应范围 | 0.5 → 1600 Hz |
| 工作温度范围 | -40 → +85 °C |
| 宽度 | 4.15mm |
| 封装类型 | LFCSP LQ |
| 最大工作电源电压 | 3.6 V |
| 长度 | 4.15mm |
| 最低频率响应 | 0.5Hz |
| 尺寸 | 4.15 x 4.15 x 1.45mm |
| 最小工作电源电压 | 1.8 V |
| 工作电源电压范围 | 1.8 → 3.6 V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | ADXL335 |
