Manufacturer Part Number:

NOJA106M006RWJ

OneIC Part Number:

10-NOJA106M006RWJ

Manufacturer:

avx

Description:

Cap Niobium 10uF 6.3V 20% (3.2 X 1.6 X 1.6mm) SMD 2.2 Ohm 105°C T/R

Customer Reference:

Datasheet:

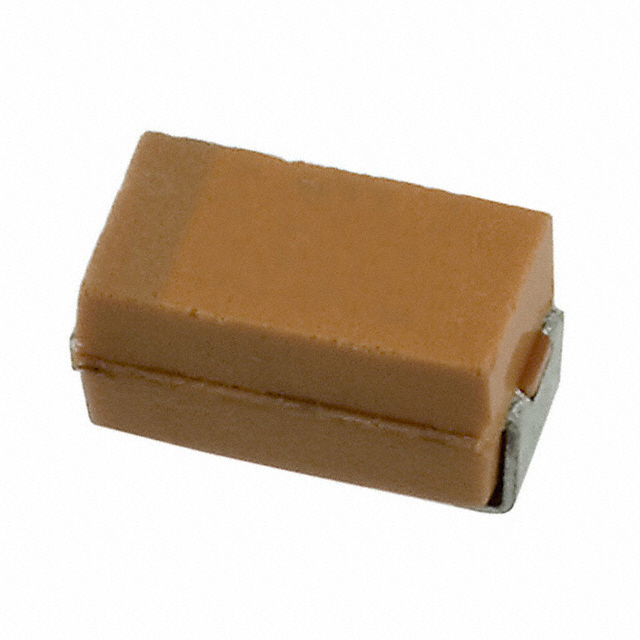

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Package/Case	3216-18
Mounting	Surface Mount
Capacitance Value	10 uF
Voltage	6.3 Vdc
Tolerance	20 %
Equivalent Series Resistance	2.2 Ohm
Product Length	3.2 mm
Product Height	1.6 mm
Operating Temperature	-55 to 105 °C
Construction	Flat
Standard Package	Tape & Reel
Product Category	Niobium Oxide Capacitors
RoHS	RoHS Compliant
Capacitance	10 uF
Voltage Rating	6.3 V
Operating Temperature Range	- 55 C to + 105 C
ESR	2.2 Ohms
Package / Case	1206 (3216 metric)
Height	1.8 mm
Packaging	Reel
Case Height	1.8 mm
Case Length	3.2 mm
Case Width	1.6 mm
Dimensions	1.6 mm W x 3.2 mm L x 1.8 mm H
Leakage Current	1.2 uA
Product	Niobium Oxide Capacitors
Ripple Current	0.202 A
Series	NOJ
Factory Pack Quantity	2000
Termination Style	SMD/SMT
Tradename	Oxicap
Type	Low Profile Niobium Oxide Capacitor
Equivalent Series Resistance	2.2
Product Length	3.2
EU RoHS	Compliant
Maximum Operating Temperature	105
Leakage Current	1.2
Equivalent Series Resistance Type	Standard
Product Depth	1.6
Product Height	1.6
Dissipation Factor	6
Mounting Type	Surface Mount
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	2.2 Ohm
Current - Leakage	1.2µA
Dissipation Factor	6%
Height - Seated (Max)	0.071" (1.80mm)
Manufacturer Size Code	A
rohs	Lead free / RoHS Compliant
Other Names	478-1821-1
Operating Temp Range	-55C to 105C
Rad Hardened	No
Failure Rate	Not Required
Tolerance (+ or -)	20%
DCL	1.2 uA
DF	6%
Mounting Style	Surface Mount
Product Length (mm)	3.2 mm
Product Depth (mm)	1.6 mm
Product Height (mm)	1.6 mm
DELETED	Compliant
Capacitance Tolerance	:± 20%
Capacitor Case Style	:1206 [3216 Metric]
Operating Temperature Min	:-55°C
Operating Temperature Max	:105°C
Capacitor Terminals	:SMD
SVHC	:No SVHC (20-Jun-2013)
Capacitor Mounting	:SMD
External Depth	:1.6mm
External Length / Height	:3.2mm
External Width	:1.6mm
No. of Pins	:2
Terminal Type	:Surface Mount (SMD, SMT)
Tolerance +	:20%
Tolerance -	:20%
Voltage Rating V DC	:6.3V
Weight (kg)	0.000175
Tariff No.	85322100
CaseSize	1206(3216mm)
Current,DCLeakage	1.2uA(Max.)
Current,Ripple	0.182A(Max)@100KHz,85°C
DissipationFactor	6%(Max.)
ESR,TestCondition	(Max.)@100KHz
Material,Element	NiobiumOxide
Reliability	0.5%per1000hr@85°C
Temperature,Operating,Maximum	105°C
Temperature,Operating,Minimum	-55°C
Termination	SMT
Voltage,Rating	6.3VDC
Voltage,Rating,TestCondition	@+85°C
Voltage,Ripple	0.400V@100KHz,85°C
Voltage,Surge	8VDC
Voltage,Surge,TestCondition	@+85°C
