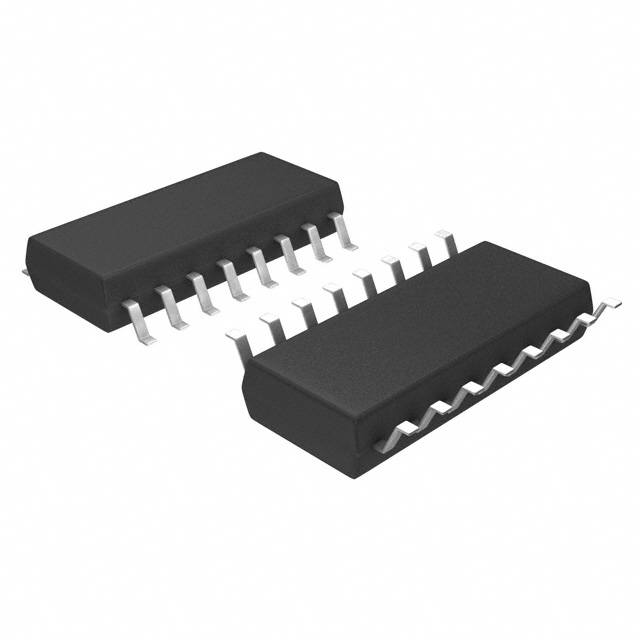

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 16SOP |
| Type | Magnitude Comparator |
| Number of Bits | 4 |
| Output Function | A<B, A=B, A>B |
| Maximum Low Level Output Current | 4.2(Min) mA |
| Maximum High Level Output Current | -4.2(Min) mA |
| Operating Supply Voltage | 3.3|5|9|12|15 V |
| Maximum Propagation Delay Time @ Maximum CL | 600@5V|250@10V|160@15V ns |
| Standard Package | Tape & Reel |
| Product Category | Comparator ICs |
| RoHS | RoHS Compliant |
| Product | Analog Comparators |
| Supply Voltage - Max | 18 V |
| Supply Voltage - Min | 3 V |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOP-16 |
| Packaging | Reel |
| Minimum Operating Temperature | - 55 C |
| Propagation Delay Time | 600 ns, 250 ns, 160 ns |
| Factory Pack Quantity | 2000 |
| Polarity | Non-Inverting |
| Mounting | Surface Mount |
| Absolute Propagation Delay Time | 600 |
| Logic Family | CD4000 |
| Package Width | 5.6(Max) |
| PCB | 16 |
| Fabrication Technology | CMOS |
| EU RoHS | Compliant |
| Minimum Operating Temperature | -55 |
| Supplier Package | SOP |
| Standard Package Name | SOIC |
| Maximum Operating Temperature | 125 |
| Maximum High Level Output Current | -4.2(Min) |
| Package Length | 10.5(Max) |
| Minimum Operating Supply Voltage | 3 |
| Pin Count | 16 |
| Maximum Quiescent Current | 0.1 |
| Package Height | 1.85(Max) |
| Maximum Low Level Output Current | 4.2(Min) |
| Typical Operating Supply Voltage | 3.3|5|9|12|15 |
| Maximum Operating Supply Voltage | 18 |
| Lead Shape | Gull-wing |
| Current - Quiescent | 100µA |
| Mounting Type | Surface Mount |
| Current - Output High, Low | 4.2mA, 4.2mA |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3 V ~ 18 V |
| Max Propagation Delay @ V, Max CL | 160ns @ 15V, 50pF |
| Output | Active High |
| Package/Case | 16-SOIC (0.209", 5.30mm Width) |
| rohs | Lead free / RoHS Compliant |
| Other Names | 296-29114-1 |
| Series | CD4585B |
| Unit Weight | 0.007079 oz |
| Technology | CMOS |
| Package Type | SOP |
| Quiescent Current | 100 uA |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -55C |
| High Level Output Current | -4.2 mA |
| Operating Temperature Classification | Military |
| Low Level Output Current | 4.2 mA |
| Abs. Propagation Delay Time | 600 ns |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 3.3/5/9/12/15 V |
| Operating Supply Voltage (Min) | 3 V |
| Operating Supply Voltage (Max) | 18 V |
| Status | ACTIVE |
| Temp (oC) | -55 to 125 |
| DSCC # | |
| Package | Pins | SO (NS) | 16 |
| Device Marking | View |
| Package QTY | Carrier | 2000 | LARGE T&R |
| Functional Diagram | |
| Technology Family | CD4000 |
| tpd @ Nom Voltage | 250 |
| Bits | 4 |
| Input Level | |
| HiRel | Y |
| Package Group | CDIP PDIP SO TSSOP WAFERSALE |
| Reference Design | |
| VCC | 18 |
| Operating Temperature Range | -55 to 125 |
| Datasheet | SCHS091B |
| Output Level | |
| F @ Nom Voltage | 8 |
| ICC @ Nom Voltage | 0.3 |
| Rating | Military |
| Output Drive (IOL/IOH) | 4/-4 |
| TI Design | |
| Voltage | 10 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | CD4585B Types |
