texas instruments

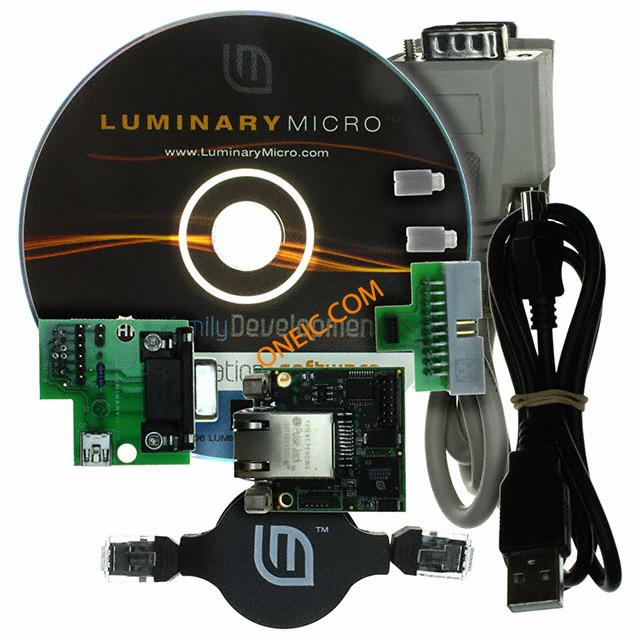

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Development Kit |
| Standard Package | Boxed |
| Product Category | Development Boards & Kits - ARM |
| RoHS | RoHS Compliant |
| Product | Reference Designs |
| Core | ARM Cortex M3 |
| Interface Type | Ethernet, RS-232, UART, USB |
| Operating Supply Voltage | 3.3 V, 5 V |
| Data Bus Width | 32 bit |
| Description/Function | Design Kit |
| Packaging | Bulk |
| Factory Pack Quantity | 1 |
| EU RoHS | RoHS Not Applicable |
| Main Purpose | Interface, Ethernet |
| Embedded | Yes, MCU, 32-Bit |
| Primary Attributes | Serial-to-Ethernet, 230.4 kBaud, 10/100 Mbit Ethernet Port |
| Utilized IC / Part | LM3S6432 |
| Secondary Attributes | Ready-for-Production, Auto MDI/MDIX Correction |
| Supplied Contents | 2 Boards, Cables, Software |
| rohs | Contains lead / RoHS non-compliant |
| Silicon Manufacturer | :Texas Instruments |
| Silicon Core Number | :MDL-S2E |
| Kit Application Type | :Microcontroller |
| Application Sub Type | :Serial to Ethernet Module |
| Core Architecture | :ARM |
| Core Sub-Architecture | :Cortex-M3 |
| Silicon Family Name | :Stellaris |
| Kit Contents | :Serial-to-Ethernet Module, Retractable Ethernet Cable, DB9 Serial Cable, USB Cable |
| Features | :Auto MDI/MDIX Cross-Over Correction, UART Ports Include RTS/CTS for Flow Control |
| SVHC | :No SVHC (20-Jun-2013) |
| Development Tool Type | :Reference Design Kit |
| Kit Contents Descriptive | :Stellaris Serial-to-Ethernet Module (MDL-S2E), RS-232 adaptor board, Retractable Ethernet cable, DB9 serial cable, USB cable, Quickstart Guide, User's Manual, Software Reference Manual, Board Data Sheet, source code, BOM, schematics, and Gerber files on CD |
| Kit Features | :Stellaris LM3S6432 ARM Cortex-M3 Microcontroller, 10/100 Mbit Ethernet Port, Two Serial Ports |
| MCU Supported Families | :Stellaris LM3S6000 Series ARM Cortex-M3 |
| Weight (kg) | 0.25 |
| Tariff No. | 85423190 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | LM3S6432 |
| Datasheets | RDK-S2E, MDL-S2E(-B) Data Sheet |
| Datasheets | Serial-to-Ethernet Reference Design Kit |
