Manufacturer Part Number:

RI-ANT-G02E-30

OneIC Part Number:

136-RI-ANT-G02E-30

Manufacturer:

texas instruments

Description:

Antenna

Customer Reference:

Datasheet:

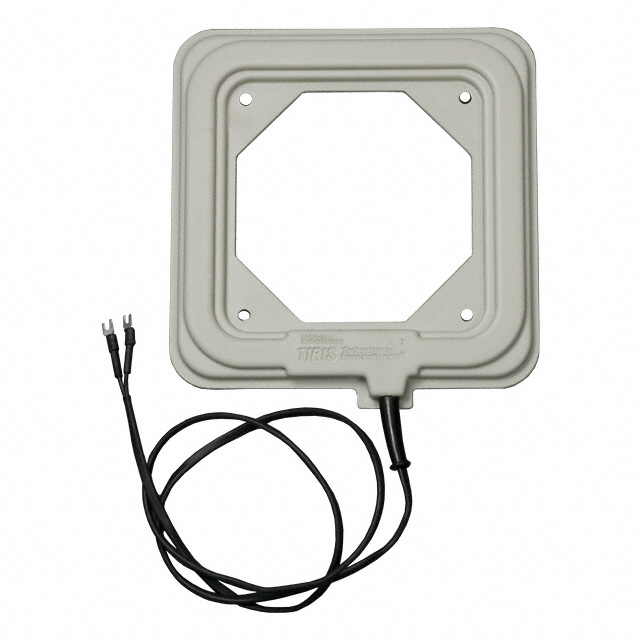

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Minimum Frequency	0.1342 MHz
Standard Package	Bulk
Minimum Frequency	0.1342
Minimum Operating Temperature	-30
EU RoHS	Supplier Unconfirmed
Maximum Operating Temperature	60
Packaging	Bulk
Specifications	200mm x 200mm x 25mm
Frequency	134.2kHz
rohs	Gate Antenna
Antenna Form Factor	Loop
Supported Frequency Bands	134.2 kHz
Status	ACTIVE
Temp (oC)	-30 to 60
Package \| Pins	(0) \| 0
Package QTY \| Carrier	1
Dimensions (mm)	200 x 200 x 25
Functional Diagram	alt_scbs845a.gif
Package
Transmission Principle
Standard
Datasheet	SCBS845A
Supply voltage
Required antenna inductance
Communication Interface
Operating Temperature Range (°C)	-30 to 60
规格	200mm x 200mm x 25mm
系列	Gate Antenna
频率	134.2kHz
支持的频带	134.2 kHz
天线形状系数	环路

Documents & Media

RESOURCE TYPE	LINK
Datasheets	RI-ANT-G0xE,S0xC,P02A
