texas instruments

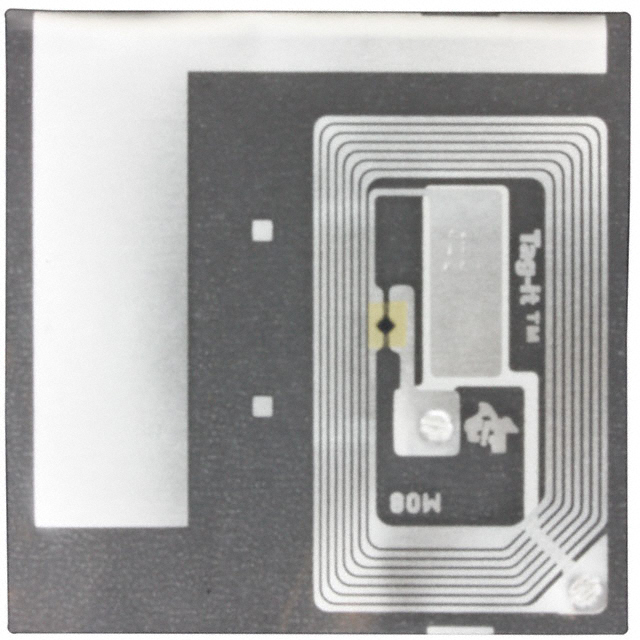

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | RFID Transponders |
| RoHS | RoHS Compliant |
| Memory Size | 256 bit |
| Operating Temperature Range | - 25 C to + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | RFIDN-0 |
| Frequency | 13.56 MHz |
| Function | Read/Write |
| Maximum Operating Temperature | + 70 C |
| Minimum Operating Temperature | - 25 C |
| Factory Pack Quantity | 5000 |
| EU RoHS | Compliant |
| Features | ISO15693, ISO18000-3, 256-bits |
| RF Type | Read / Write |
| Packaging | Tape & Reel (TR) |
| Standard Package | 5,000 |
| Other Names | 481-1088-2 |
| Package/Case | 38mm x 22.5mm |
| rohs | Contains lead / RoHS compliant by exemption |
| Rad Hardened | No |
| Status | ACTIVE |
| Temp (oC) | -25 to 70 |
| Package | Pins | RFIDN (TFE) | 0 |
| Data Rate Downlink (kbits/s) | |
| Minimum Antenna Input Voltage @ ftx (Volts) | |
| Anticollision | Yes |
| Storage Temperature (°C) | -40 to 85 |
| Programming Cycles | 100000 |
| Dimensions (mm) | 38 x 22.5 |
| User programmable Memory (bits) | 256 |
| Package Group | RFIDN |
| Standard | ISO 15693 ISO 18000-3 |
| Modulation Technique | |
| Case Material | |
| Die Processing | |
| Operating Temperature Range (°C) | -25 to 70 |
| Security Features | Password Command Kill Command Factory Memory Lock User Memory Lock |
| Package | Inlay |
| Protection Class | |
| Recommended Operating Enviroment | Paper laminated PVC laminated |
| Transmission Principle | ASK FSK |
| Datasheet | SCBS823C |
| Write Time (ms) | |
| Read Time (ms) | |
| Chip Thickness (micrometers) | |
| Output Impedance | |
| Factory Programmed Read Only Number (bits) | 64 |
| 频率 | 13.56MHz |
| 频率类型 | Read / Write |
| 系列 | Tag-it™ HF-I Pro Rectangle Inlays |
| 封装/外壳 | 38mm x 22.5mm |
| 特性 | ISO15693, ISO18000-3, 256-bits |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | RI-I03-114A-S1 |
