Manufacturer Part Number:

TPA3101D2EVM

OneIC Part Number:

136-TPA3101D2EVM

Manufacturer:

texas instruments

Description:

Audio Power Amplifier Evaluation Module With LC Filter

Customer Reference:

Datasheet:

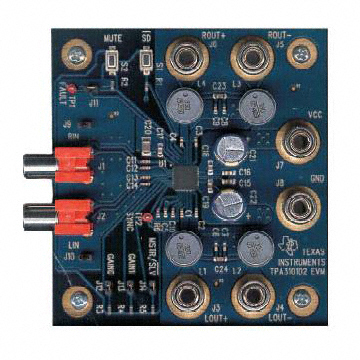

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Development Kit
Family	TPA3101D2
Standard Package	Bulk
Product Category	Audio IC Development Tools
RoHS	No
Tool Is For Evaluation Of	TPA3101D2
Operating Supply Voltage	10 V to 26 V
Operating Supply Current	4 A
Output Power	10 W
Factory Pack Quantity	1
EU RoHS	RoHS Not Applicable
Board Type	Fully Populated
Utilized IC / Part	TPA3101D2
Output Type	2-Channel (Stereo)
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	10 V ~ 26 V
Supplied Contents	Board
Amplifier Type	Class D
Other Names	296-21139
Max Output Power x Channels @ Load	10W x 2 @ 8 Ohm
rohs	Contains lead / RoHS non-compliant
操作温度	-40°C ~ 85°C
电压 - 电源	10 V ~ 26 V
使用的 IC/零件	TPA3101D2
不同负载时的最大输出功率 x 通道数	10W x 2 @ 8 Ohm
输出类型	2-Channel (Stereo)
放大器类型	Class D
所含物品	Board

Documents & Media

RESOURCE TYPE	LINK
Datasheets	TPA3101D2EVM User Guide
Datasheets	TPA3101D2

In-Stock:

Can ship immediately
