Fluke

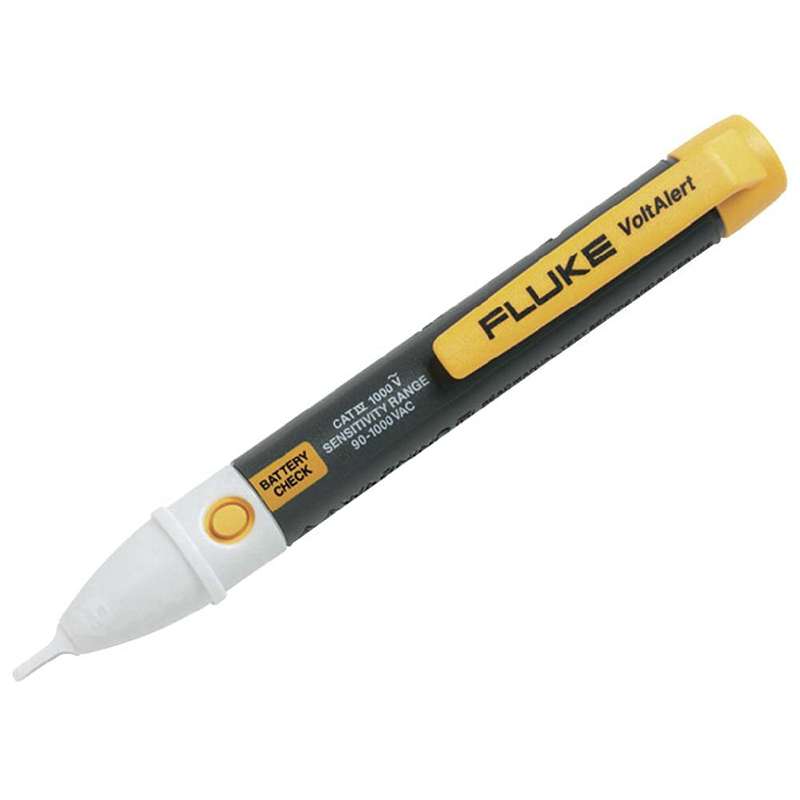

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Specifications | Measures AC Voltage 90 ~ 1000VAC |
| Ratings | CAT IV 1000V |
| Type | Voltage Detector |
| Standard Package | 12 |
| Factory Pack Quantity | 12 |
| Product | Multimeters |
| Product Category | Digital Multimeters |
| AC Supply Voltage | 90 V to 1 kV |
| True RMS | No |
| Frequency | 45 Hz to 405 Hz |
| Voltage Range | 90 V to 1 kV |
| Part # Aliases | 2432932 |
| RoHS | RoHS Compliant By Exemption |
| Standard Pack: | 12 |
| BatteryType | AAA |
| Brand/Series | 1AC-II/1LAC-IIVoltAlert |
| DetectorType | DualLevelsBlueindicatedproximitytoACVoltage,REdindicatesyouareattheSource |
| OperatingTemperature,Maximum | 50°C |
| OperatingTemperature,Minimum | 0°C |
| PrimaryType | AC |
| Sensitivity | Blue1"to5"fromthesourceandredwhenatthesource |
| TipStyle | FlatTip |
| VoltageRange | 90-1000V |
| Voltage,Range,AC | 90-1000 |
| Voltage,Rated | CATIV1000V |
| Safety Category Level | CAT IV |
| Brand Name | Fluke |
| Minimum Detection Voltage | 90V ac |
| Indicator Type | LED |
| Safety Category Voltage | 1000V |
| Maximum Detection Voltage | 1000V ac |
| Model Number | FLUKE-1AC-A1-II |
| Safety Category | CAT IV 1000 V |
| Minimum Operating Temperature | -14°F |
| Battery Type | AAA Alkaline Battery |
| Product Type | Voltage Tester |
| Maximum Operating Temperature | +122°F |
| Power Source | Battery |
| Safety to | EN61010-1.2 |
| Description | For USA/CAN/NOR |
| Batteries | 2 x LR03/AAA |
| Voltage testing | 90...1000 VAC |
| Indication, sound | + |
| Indication, LED | red |
| 型号（P） | 1AC |
| 最高工作温度 | +50°C |
| 安全类别 | CAT IV 1000 V |
| 安全类别等级 | CAT IV |
| 电源 | 电池 |
| 最低工作温度 | -10°C |
| 可听声响 | 是 |
| 指示器类型 | 电压 |
| 最低检测电压 | 90V |
| 最大检测电压 | 1000V |
| 安全类别电压 | 1000V |
| 电池类型 | AAA |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 1AC II Instruction Sheet |
