Manufacturer Part Number:

FLUKE-381

OneIC Part Number:

142-FLUKE-381

Manufacturer:

Fluke

Description:

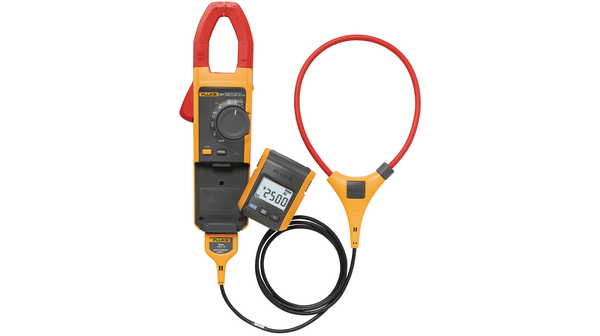

Clamp Multimeters & Accessories REMOTE DISP 1000A TRMS CLAMP W/IFLEX

Customer Reference:

Datasheet:

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Specifications	DMM Functions Include Voltage, Resistance, Frequency and Current to 1000A
Standard Package	1
Type	Current Clamp Meter (Stand Alone)
Ratings	CAT III 1000V, CAT IV 600V
Absolute Maximum AC Current Measurement	2500A ac
Absolute Maximum AC Voltage Measurement	1000V ac
Absolute Maximum DC Current Measurement	999.9A dc
Absolute Maximum DC Voltage Measurement	1000V dc
Absolute Maximum Resistance Measurement	60000Ω
AC Current Measurement Resolution	0.1A ac
AC Voltage Measurement Resolution	0.1V ac
Battery Type	AA
Best AC Current Accuracy	±2% + 5 Digits
Best AC Voltage Accuracy	±1.5% + 5 Digits
Best DC Current Accuracy	±2% + 5 Digits
Best DC Voltage Accuracy	±1% + 5 Digits
Best Resistance Measurement Accuracy	±1% + 5 Digits
Calibrated	RSCAL
Clamp Meter Type	Continuity, Current, Frequency, Resistance, Voltage
DC Current Measurement Resolution	0.1A dc
DC Voltage Measurement Resolution	0.1V dc
Dimensions	280 x 88 x 50mm
Display Type	LCD
Functions Measured	AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Frequency, Resistance
Height	50mm
Length	280mm
Maximum Conductor Size	34mm
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C
Power Source	Battery
Resistance Measurement Resolution	0.1Ω
Safety Category	CAT III 1000 V, CAT IV 600 V
Safety Category Level	CAT III, CAT IV
Safety Category Voltage	1000 V, 600 V
True RMS	Yes
Weight	540g
Width	88mm
rohs	Compliant
Product	Clamp Multimeters
Unit Weight	12.345887 oz
Frequency	500 Hz
Backlighting	Yes
Part # Aliases	3610452
Accuracy	1 %
RoHS	RoHS Compliant By Exemption
Standard Pack:	1
DMM Type	:Clamp
Voltage Measuring Range DC	:1kV
Voltage Measuring Range AC	:1kV
Current Measuring Range DC	:0A to 999.9A
Current Measuring Range AC	:0A to 999.9A
Resistance Measuring Range	:60kohm
Frequency Measuring Range	:500Hz
Capacitance Measuring Range	:-
Temperature Measuring Range	:-
DMM Response Type	:True RMS
DMM Functions	:AC/DC Current, AC/DC Voltage, Continuity, Frequency, Resistance
Ranging	:Auto
Plug Type	:-
SVHC	:No SVHC (20-Jun-2013)
No. of Digits / Alpha	:-
Weight (kg)	3
Tariff No.	90303310
Backlight	Yes
Current,Range,AC	999.9Aand2500AwithiFlex
PrimaryType	ClampMeter
Resistance,Range	60kΩ
Voltage,Range,AC	600V
Voltage,Range,DC	600V
Warranty	3YearsforElectronicsandOneYearonCable
Wire,AWG	1.3In.
DC voltage measuring accuracy	±(1,5% + 5 digits)
Resistance measuring accuracy	±(1% + 5 digits)
DC current measuring accuracy	±(2% + 5 digits)
CF crest factor	1,42 at 1000A, 2,5 at 600A, 3 at 500A
Max diameter of measured cable	34mm
Meter type	digital clamp meter
Frequency measuring accuracy	±(0,5% + 5 digits)
Frequency measuring range	5...500Hz
AC current measuring accuracy	±(2% + 5 digits)
Continuity test	acoustic signal for R
Body dimensions	277 x 88 x 43mm
Multiplicity	1
Gross weight	1.36 kg
DC current measuring range	0,1...999,9A
Display	LCD
Resistance measuring range	0,1...600/6k/60kΩ
AC voltage measuring accuracy	±(1,5% + 5 digits)
Power supply	3 batteries 1,5V LR03 (AAA), 2 batteries 1.5V LR03 (AAA) (display module)
AC current measuring range	0,1...999,9A
DC voltage measuring range	0,1...600/1000V
AC voltage measuring range	0,1...600/1000V
