Fluke Electronics

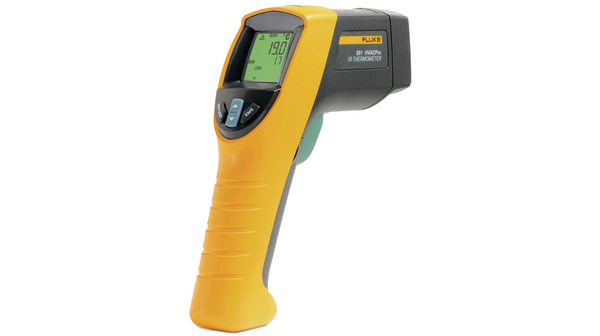

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Probe Type | K |
| Display Type | LCD |
| Features | Backlight, Hold, Laser Sight, Min/Max/Dif/KTC |
| Temperature Display | C°/F° |
| Includes | Case, Thermocouple - K-Type Pipe Probe |
| Battery Cell Size | AA (2) |
| Input Type | Infrared; Thermocouple |
| Standard Package | 5 |
| Temperature Range | -40 ~ 1022°F (-40 ~ 550°C) |
| Type | Handheld, Gun |
| Absolute Maximum Temperature Measurement | +550°C |
| Best Accuracy | ±1 % |
| Dimensions | 254 x 191 x 69mm |
| Distance to Spot Ratio | 12:1 |
| Emissivity | 0.7 |
| Height | 69mm |
| Length | 254mm |
| Model Number p | Fluke 561 |
| Resolution | 0.1 °C |
| Response Time | 500 ms |
| Temperature Scale | Centigrade, Fahrenheit |
| Weight | 340g |
| Width | 191mm |
| rohs | Not Applicable |
| Calibrated | RSCAL |
| Factory Pack Quantity | 5 |
| Product Category | Environmental Test Equipment |
| Measures | Temperature |
| Unit Weight | 12 oz |
| Equipment Type | Thermometer |
| Part # Aliases | 2558118 |
| Accuracy | 1 % |
| RoHS | RoHS Compliant By Exemption |
| Temperature Measuring Range | :-40°C to +550°C |
| Accuracy % | :1% |
| Wavelength Max | :670nm |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :50°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Battery Lifetime | :12h |
| Battery Size Code | :2 x AA |
| Laser Class | :Class 2 |
| Weight (kg) | 0.81 |
| Tariff No. | 90251920 |
| BatteryType | 2AA |
| DistancetoSpotSizeRatio | 12:1 |
| HoldTime | 7Sec |
| MeasurementUnits | °C,°F |
| PrimaryType | Infrared/Contact |
| SpectralResponse | 8-14μ |
| TemperatureRange | –40to550°C |
| ThermocoupleType | K |
| Time,Response | 500mSec |
| Non-contact temperature measuring resolution | 0,1°C |
| Meter type | infra-red thermometer |
| Body dimensions | 177 x 163.5 x 52mm |
| Temperature measuring accuracy (measurement with probe) | ±1,1°C |
| Optical resolution | 12:1 |
| Multiplicity | 1 |
| Power supply | 2 batteries 1,5V LR6 (AA) |
| Temperature measuring range for contact temperature measurement | -40...550°C |
| Emissivity value | 0,3 (fixed), 0,7 (fixed), 0,95 (fixed) |
| Gross weight | 1.02 kg |
| Typical distance to measuring point | do 1.5m |
| Non-contact temperature measuring accuracy | ±1% or ±1°C |
| Non-contact temperature measuring range | -40...550°C |
| Response time | |
| Weight with battery | 340g |
| Display | LCD |
| Optional equipment | FLK-H6 - soft cover |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 561 Users Manual |
| Datasheets | Test Tool Catalog |
