Fluke Electronics

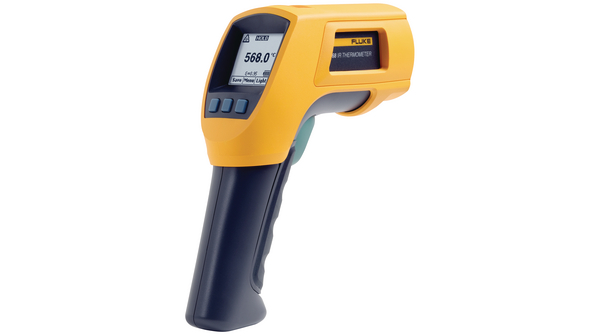

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Probe Type | K |
| Display Type | Dot Matrix |
| Features | Alarm, Backlight, Laser Sight, Memory, Min/Max/Dif/Ave |
| Temperature Display | C°/F° |
| Includes | Case, Software, Thermocouple - K-Type Bead Probe |
| Battery Cell Size | AA (2) |
| Input Type | Infrared; Thermocouple |
| Standard Package | 1 |
| Temperature Range | -40 ~ 1202°F (-40 ~ 650°C) |
| Type | Handheld, Gun |
| Absolute Maximum Temperature Measurement | +650°C |
| Best Accuracy | ±1 % |
| Calibrated | RSCAL |
| Data Storage | Yes |
| Dimensions | 254 x 191 x 69mm |
| Distance to Spot Ratio | 30:1 |
| Emissivity | 0.1 → 1 |
| Height | 69mm |
| Length | 254mm |
| Model Number p | Fluke 566 |
| Resolution | 0.1 °C |
| Response Time | 500 ms |
| Temperature Scale | Centigrade, Fahrenheit |
| Weight | 965g |
| Width | 191mm |
| rohs | Not Applicable |
| Factory Pack Quantity | 1 |
| Product Category | Environmental Test Equipment |
| Display Count | 3 |
| Measures | Temperature |
| Equipment Type | Thermometer |
| Part # Aliases | 2837799 |
| Accuracy | 1 % |
| RoHS | RoHS Compliant By Exemption |
| Temperature Measuring Range | :-40°C to +650°C |
| Accuracy % | :1% |
| Wavelength Max | :670nm |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :50°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Battery Lifetime | :12h |
| Battery Size Code | :2 x AA |
| Laser Class | :Class 2 |
| Operating Temperature Range | :0°C to +50°C |
| Weight (kg) | 0.97 |
| Tariff No. | 90251920 |
| BatteryType | 2AA |
| DistancetoSpotSizeRatio | 30:1 |
| MeasurementUnits | °C,°F |
| PrimaryType | Infrared/Contact |
| SpectralResponse | 8-14μ |
| TemperatureRange | –40to650°C |
| ThermocoupleType | K |
| Time,Response | <500mSec |
| Non-contact temperature measuring resolution | 0,1°C |
| Meter type | infra-red thermometer |
| Body dimensions | 254 x 191 x 69mm |
| Temperature measuring accuracy (measurement with probe) | ±1% or ±1°C |
| Optical resolution | 30:1 |
| Multiplicity | 1 |
| Power supply | 2 batteries 1,5V LR6 (AA) |
| Temperature measuring range for contact temperature measurement | -270...1372°C |
| Emissivity value | 0,1...1 |
| Gross weight | 1.04 kg |
| Non-contact temperature measuring range | -40...650°C |
| Emissivity resolution | 0.01 |
| Response time | |
| Weight with battery | 965g |
| Display | LCD (98x96 pixels) |
| Non-contact temperature measuring accuracy | ±1% or ±1°C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 566_568 User Manual |
| Datasheets | 566,568 |
