Fluke Electronics

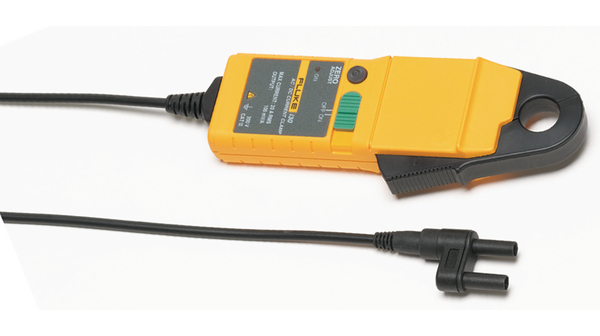

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Specifications | Measures AC, DC Current to 30A, Banana Interface |
| Standard Package | 1 |
| Type | Current Clamp, Probe (Add On) |
| Ratings | CAT III 300V |
| Adapter Type | AC/DC |
| Battery Life | 30 h |
| Battery Type | 9V |
| Best Accuracy | ±1% + 2 mA |
| Cable Length Extended | 1.5m |
| Connector Type | 4 mm Plug |
| Maximum AC Current | 30A ac |
| Maximum Conductor Size | 19mm |
| Maximum DC Current | 30A dc |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | 0°C |
| Model Number p | I30 |
| Output Type | Current |
| Resolution | 1 mA |
| Safety Category | CAT III 300 V |
| Safety Category Level | CAT III |
| Safety Category Voltage | 300V |
| rohs | Not Applicable |
| Calibrated | UKAS |
| Standard Pack: | 1 |
| Test Probe Type | :Clamp |
| Test Probe Functions | :Current |
| Accuracy % | :1% |
| For Use With | :Multimeters |
| SVHC | :No SVHC (20-Jun-2013) |
| Accuracy | :1% rdg + 2mA |
| Battery Lifetime | :20h |
| Battery Size Code | :PP3 |
| Cable Diameter Max | :19mm |
| Current Range AC | :20 A |
| Frequency Measuring Range | :20kHz |
| Lead Length | :1.5m |
| Output | :100mV/A |
| Weight | :250g |
| Weight (kg) | 0.38 |
| Tariff No. | 90303100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | i30(S) Instruction Sheet |
