grayhill

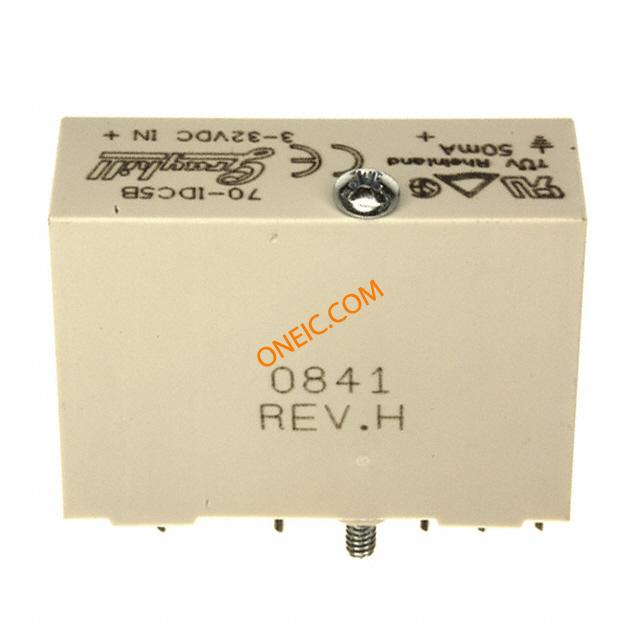

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Output Type | DC |
| Maximum Output Current | 0.05 A |
| Maximum Output Voltage | 50(Min) V |
| Maximum Input Current | 18 mA |
| Maximum Input Voltage | 32 V |
| I/O Isolation Voltage | 4000(RMS) V |
| Mounting | Screw |
| Standard Package | Bulk |
| Tecnologia | Solid State |
| Tipo di ingresso | DC |
| Corrente di carico massima | 50mA |
| Tensione massima in entrata | 32VDC |
| Tipo di terminale | PC Pins |
| Montaggio | Through Hole |
| Approvazioni dell'agenzia | CE/CSA/TUV/UL |
| Temperatura d'esercizio minima | -40 |
| Tipo di modulo | Input Module |
| Massima temperatura d'esercizio | 100 |
| Tensione d'isolamento I/O | 4000Vrms |
| Corrente massima in entrata | 18mA |
| RoHS UE | RoHS Not Applicable |
| Subcategory | I/O Module |
| Series | 70 |
| Lead Time | 21 Days |
| Style | Standard |
| Logic Supply Current (Output) | 18mA |
| Color | White |
| Logic Supply Voltage (Output) | 5VDC (3 ~ 6VDC) |
| Current - Input | 18mA |
| Voltage - Input | 3 ~ 32VDC |
| Turn On Time | 0.05ms |
| Turn Off Time | 0.075ms |
| Type | DC |
| Features | Hold Down Screw |
| rohs | Contains lead / RoHS non-compliant |
| ConnectiontoHost | BoardMount |
| Current,Input | 18mA |
| Input | 3to32VDC |
| InputType | Digital |
| Input,Range | 3to32VDC |
| LogicVoltage,Nominal | 5VDC |
| NumberofChannels | 1 |
| PrimaryType | Control |
| SpecialFeatures | OpticalIsolation |
| Time,Turn-Off | 0.075ms(Max.) |
| Time,Turn-On | 0.050ms(Max.) |
| Voltage,Input | 32VDC(Max.) |
| Voltage,Isolation | 4000VAC |
| Voltage,Logical | 3to6VDC |
| Voltage,Rating | 3to32VDC |
| Voltage,Supply | 5VDC |
| 系列 | 70 |
| 样式 | Standard |
| 接通时间 | 0.05ms |
| 特性 | Hold Down Screw |
| 逻辑电源电流（输出） | 18mA |
| 电压 - 输入 | 3 ~ 32VDC |
| 关断时间 | 0.075ms |
| 类型 | DC |
| 颜色 | White |
| 电流 - 输入 | 18mA |
| 逻辑电源电压（输出） | 5VDC (3 ~ 6VDC) |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | DC Input Modules |
