grayhill

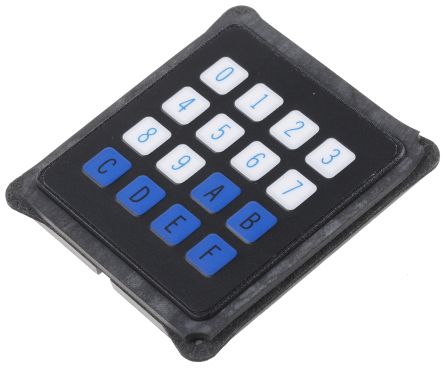

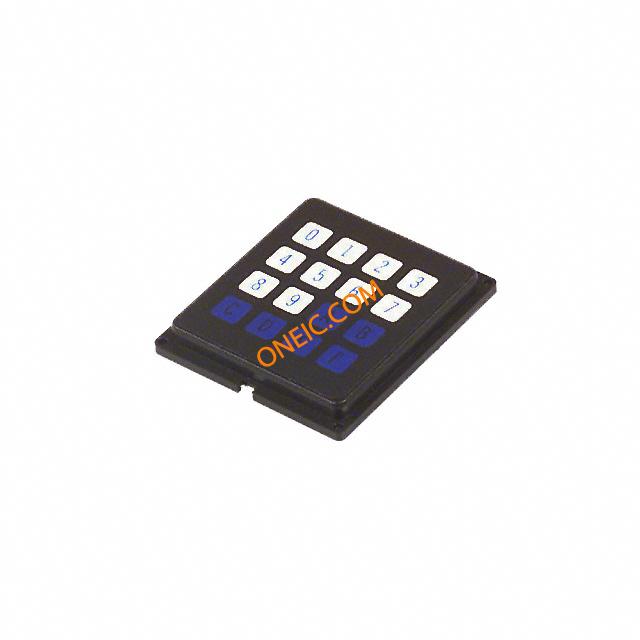

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Keypad |
| Number of Keys | 16 Key |
| Connection Type | Terminal Pins |
| Maximum Contact Resistance | 10 Ohm |
| Operating Force | 3.43 N |
| Housing Material | Acrylonitrile Butadiene Styrene Polycarbonate |
| Product Depth | 68.58 mm |
| Product Height | 9.14 mm |
| Product Length | 76.2 mm |
| Standard Package | Bulk |
| Product Length | 76.2 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 80 |
| Maximum DC Voltage Rating | 24 |
| Product Depth | 68.58 |
| Total Travel | 0.38 |
| Maximum Contact Resistance | 10 |
| Operating Force | 3.43 |
| Minimum Operating Temperature | -40 |
| Product Height | 9.14 |
| Maximum Current Rating | 10@24VDC |
| Layout | 4x4 Key |
| Subcategory | Keypads and Keyboards |
| Series | 88 |
| Lead Time | 70 Days |
| Seal Rating | IP42 |
| Output Type | Matrix |
| Key Type | Polyester Overlay |
| Matrix (Columns x Rows) | 4 x 4 |
| Illumination | Non-Illuminated |
| Interchangeable Legends | No |
| Legend | 0 ~ 9, A ~ F |
| Switch Type | Snap Dome |
| rohs | Lead free / RoHS Compliant |
| Case Material | ABS |
| Keypad Layout | 4 x 4 |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Color,Housing | Black |
| Height | 3.000±0.015in. |
| Material | ABSpolycarbonate |
| MountingType | FlangeMount |
| OutputType | Matrix |
| Resistance,Contact | 10Ohms(Max.) |
| Size | 4x4in. |
| Temperature,Operating | -40to+80°C |
| Voltage,Rating | 24VDC |
| 最高工作温度 | +80°C |
| 按键数 | 16 |
| 最低工作温度 | -40°C |
| 工作温度范围 | -40 → +80°C |
| 外壳材料 | ABS |
| 小键盘布局 | 4 x 4 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 88 Series |
