international rectifier

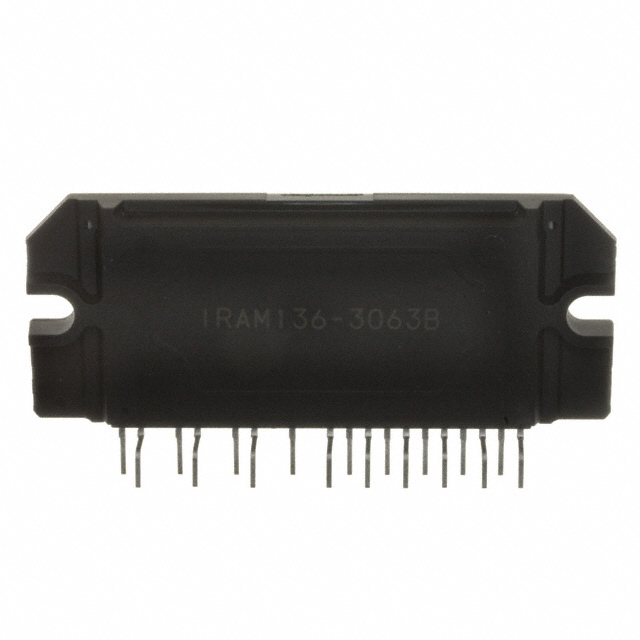

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 18SIP-3 |
| Type | Motor Driver |
| Operating Supply Voltage | 15 V |
| Operating Temperature | -20 to 100 °C |
| Mounting | Through Hole |
| Standard Package | Rail / Tube |
| RoHS | RoHS Compliant |
| Product | Fan / Motor Controllers / Drivers |
| Supply Current | 3.35 mA |
| Mounting Style | Through Hole |
| Package / Case | SiP3 |
| Packaging | Tube |
| Power Dissipation | 73 W |
| Factory Pack Quantity | 70 |
| Life | New At Mouser |
| Voltage - Isolation | 2000Vrms |
| Current | 30A |
| Voltage | 600V |
| Configuration | 3 Phase |
| Other Names | IRAM1363063B |
| rohs | Lead free / RoHS Compliant |
| Application | Appliance Motor Driver |
| Dimensions | 78 x 31.1 x 6mm |
| Height | 6mm |
| Inverter Power Rating | 73W |
| Length | 78mm |
| Maximum Collector Emitter Voltage | 600 V |
| Maximum IGBT Collector Current | 30A |
| Maximum Isolation Rating | 2000Vrms |
| Maximum Operating Supply Voltage | 600 V |
| Maximum Operating Temperature | +100 °C |
| Minimum Operating Supply Voltage | -0.3 V |
| Minimum Operating Temperature | -20 °C |
| Mounting Type | Surface Mount |
| Package Type | SIP-3 |
| Pin Count | 22 |
| Typical Switching Frequency | 20kHz |
| Width | 31.1mm |
| 电压 - 隔离 | 2000Vrms |
| 系列 | iMOTION™ |
| 配置 | 3 Phase |
| 封装/外壳 | SIP3 |
| 电压 | 600V |
| 类型 | IGBT |
| 电流 | 30A |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | IRAM136-3063B |
