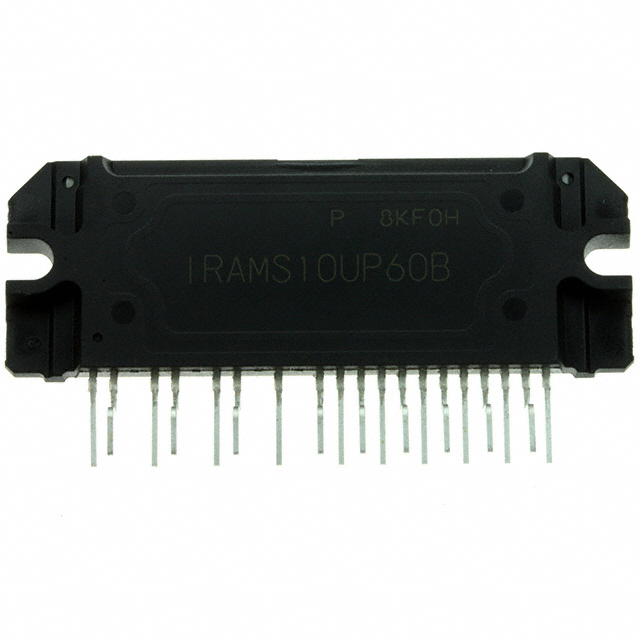

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 23SIP-1 |
| Type | Motor Driver |
| Operating Temperature | -40 to 125 °C |
| Mounting | Through Hole |
| Standard Package | Rail / Tube |
| Voltage - Isolation | 2000Vrms |
| Package / Case | PCB Module |
| Current | 10A |
| Voltage | 600V |
| Configuration | 3 Phase |
| Other Names | *IRAMS10UP60B |
| rohs | Lead free / RoHS Compliant |
| Application | Motor Driver |
| Dimensions | 62 x 5 x 22.3mm |
| Height | 22.3mm |
| Length | 62mm |
| Maximum Operating Supply Voltage | 20 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 12 V |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | SIP1 |
| Pin Count | 23 |
| Width | 5mm |
| Operating Supply Voltage | 5 V |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 80 |
| Supply Current | 165 uA |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Automotive |
| Rad Hardened | No |
| Operating Supply Voltage (Min) | 12 V |
| Operating Supply Voltage (Max) | 20 V |
| Motor Controller Type | Motor Driver |
| Device Type | :Motor |
| Module Configuration | :IGBT |
| Supply Voltage Min | :12V |
| Supply Voltage Max | :20V |
| Driver Case Style | :SIP |
| No. of Pins | :23 |
| Input Delay | :590ns |
| Output Delay | :700ns |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :10 |
| Frequency | :20kHz |
| IC Generic Number | :10UP60 |
| Logic Function Number | :60 |
| No. of Outputs | :3 |
| Operating Temperature Range | :-40°C to +150°C |
| Output Current | :10A |
| Output Current Max | :10A |
| Output Voltage | :450V |
| Output Voltage Max | :600V |
| Supply Voltage Range | :12V to 20V |
| Termination Type | :Through Hole |
| Weight (kg) | 0.01 |
| Tariff No. | 85423990 |
| Current,InputBias | 200μA |
| Current,QuiescentSupply | 165μA |
| Current,RMSPhase | 10A |
| NumberofPins | 25 |
| PowerDissipation | 2.2W |
| SwitchingLoss | 275μJ |
| Temperature,Junction,Maximum | 150°C |
| Voltage,Breakdown,CollectortoEmitter | 600V |
| Voltage,Input | 20+0.3V |
| Voltage,Input,HighLevel | 3V |
| Voltage,Input,LowLevel | 0.8V |
| Voltage,Supply | 20V |
| Output current | 10A |
| Integrated circuit type | driver |
| Gross weight | 0.02 kg |
| Output voltage | 600V |
| Multiplicity | 1 |
| Kind of integrated circuit | PWM controller |
| Collective package [pcs] | 2 |
| spg | 2 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | IRAMS10UP60B |
