international rectifier

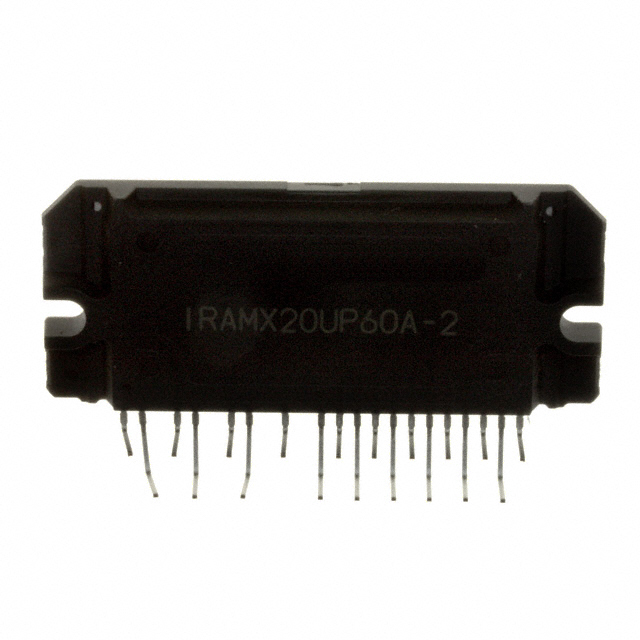

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 19SIP-2 |
| Type | Motor Driver |
| Operating Temperature | -40 to 125 °C |
| Mounting | Through Hole |
| Standard Package | Rail / Tube |
| Supplier Package | SIP-2 |
| Standard Package Name | SIP |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Package Height | 25.5 |
| Maximum Operating Supply Voltage | 20 |
| Package Width | 5.5 |
| PCB | 19 |
| Package Length | 62 |
| Minimum Operating Temperature | -40 |
| Minimum Operating Supply Voltage | 12 |
| Pin Count | 19 |
| Lead Shape | Through Hole |
| Voltage - Isolation | 2000Vrms |
| Package / Case | SIP2 |
| Current | 20A |
| Voltage | 600V |
| Configuration | 3 Phase |
| Other Names | IRAMX20UP60A2 |
| rohs | Lead free / RoHS Compliant |
| Application | Motor Driver |
| Dimensions | 62 x 5.5 x 25.8mm |
| Height | 25.8mm |
| Length | 62mm |
| Maximum Operating Supply Voltage | 20 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 12 V |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | SIP |
| Width | 5.5mm |
| Operating Supply Voltage | 5 V |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 80 |
| Supply Current | 165 uA |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Power Dissipation Pd | :38W |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| No. of Pins | :23 |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :20 |
| Frequency | :20kHz |
| Input Voltage Max | :450V |
| No. of Outputs | :3 |
| Operating Temperature Range | :-40°C to +150°C |
| Output Current | :6A |
| Output Current Max | :6A |
| Output Voltage | :600V |
| Primary Input Voltage | :450V |
| Supply Voltage Max | :15V |
| Supply Voltage Min | :12V |
| Termination Type | :Through Hole |
| Voltage Regulator Case Style | :SIP |
| Weight (kg) | 0.018 |
| Tariff No. | 85423990 |
| Case | SIP2 |
| Number of outputs | 3 |
| Output current | 20A |
| Multiplicity | 1 |
| Integrated circuit type | driver |
| Gross weight | 0.02 kg |
| Operating temperature | -40...150°C |
| Output voltage | 450V |
| Supply voltage | 12...20V DC |
| spg | 100 |
| Collective package [pcs] | 100 |
| Technology | MOSFET |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | IRAMX20UP60A |
