international rectifier

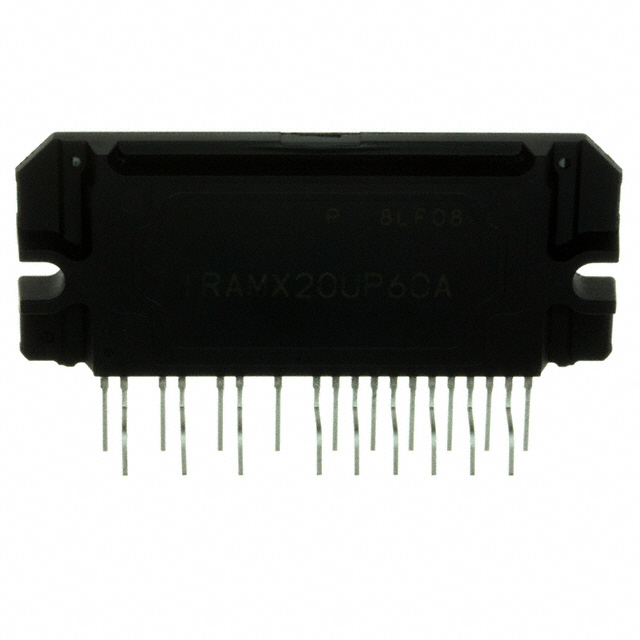

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 23SIP-2 |
| Type | Motor Driver |
| Operating Temperature | -40 to 125 °C |
| Mounting | Through Hole |
| Standard Package | Rail / Tube |
| Voltage - Isolation | 2000Vrms |
| Package / Case | SIP2 |
| Current | 20A |
| Voltage | 600V |
| Configuration | 3 Phase |
| rohs | Lead free / RoHS Compliant |
| Application | Motor Driver |
| Dimensions | 62 x 5.5 x 25.8mm |
| Height | 25.8mm |
| Length | 62mm |
| Maximum Operating Supply Voltage | 20 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 12 V |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | SIP-2 |
| Pin Count | 23 |
| Width | 5.5mm |
| Operating Supply Voltage | 5 V |
| Mounting Style | Through Hole |
| Product | Fan / Motor Controllers / Drivers |
| Factory Pack Quantity | 80 |
| Supply Current | 165 uA |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Current,InputBias | 200μA |
| Current,QuiescentSupply | 165μA |
| Current,RMSPhase | 20A |
| Frequency | 20KHz |
| NumberofPins | 25 |
| PowerDissipation | 38W |
| SwitchingLoss | 540μJ |
| Temperature,Junction,Maximum | 150°C |
| Voltage,Breakdown,CollectortoEmitter | 600V |
| Voltage,Input | 20+0.3V |
| Voltage,Input,HighLevel | 20+0.3V |
| Voltage,Input,LowLevel | 20+0.3V |
| Voltage,Supply | 20V |
| Number of outputs | 3 |
| Output current | 20A |
| Multiplicity | 1 |
| Integrated circuit type | driver |
| Gross weight | 0.02 kg |
| Operating temperature | -40...150°C |
| Output voltage | 450V |
| Supply voltage | 12...20V DC |
| spg | 4 |
| Collective package [pcs] | 4 |
| Technology | MOSFET |
| 电压 - 隔离 | 2000Vrms |
| 系列 | iMOTION™ |
| 配置 | 3 Phase |
| 封装/外壳 | SIP2 |
| 电压 | 600V |
| 类型 | IGBT |
| 电流 | 20A |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | IRAMX20UP60A |
