international rectifier

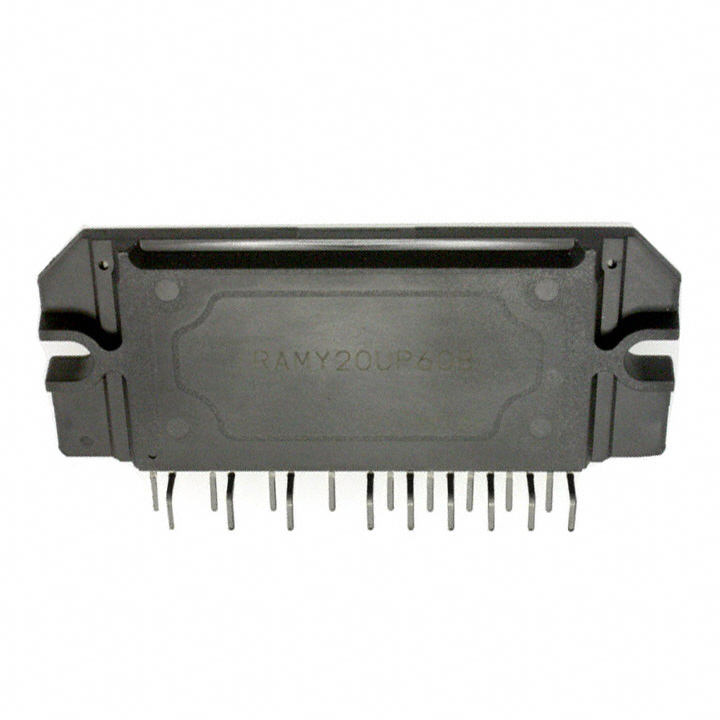

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Package | 22SIP-3 |
| Type | Motor Driver |
| Operating Temperature | -40 to 125 °C |
| Mounting | Through Hole |
| Standard Package | Rail / Tube |
| Voltage - Isolation | 2000Vrms |
| Package / Case | SIP3 |
| Current | 20A |
| Voltage | 600V |
| Configuration | 3 Phase |
| rohs | Lead free / RoHS Compliant |
| Application | Motor Driver |
| Dimensions | 78 x 6 x 31.1mm |
| Height | 31.1mm |
| Length | 78mm |
| Maximum Operating Supply Voltage | 20 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 12 V |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Package Type | SIP-3 |
| Pin Count | 22 |
| Width | 6mm |
| Operating Supply Voltage | 5 V |
| Mounting Style | Through Hole |
| Product | Fan / Motor Controllers / Drivers |
| Factory Pack Quantity | 70 |
| Supply Current | 165 uA |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Automotive |
| Rad Hardened | No |
| Operating Supply Voltage (Min) | 12 V |
| Operating Supply Voltage (Max) | 20 V |
| Motor Controller Type | Motor Driver |
| IPM Power Device | :IGBT |
| Voltage Rating (Vces / Vdss) | :600V |
| Current Rating (Ic / Id) | :20A |
| Isolation Voltage | :2000Vrms |
| IPM Mounting Type | :PCB |
| IPM Case Style | :SIP 3 |
| IPM Series | :iMOTION |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :16 |
| Device Type | :Motor |
| Driver Case Style | :SIP |
| Frequency | :20kHz |
| IC Generic Number | :16UP60 |
| No. of Outputs | :3 |
| No. of Pins | :23 |
| Operating Temperature Max | :150°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Range | :-40°C to +150°C |
| Output Current | :20A |
| Output Current Max | :20A |
| Output Voltage | :450V |
| Output Voltage Max | :600V |
| Supply Voltage Max | :20V |
| Supply Voltage Min | :12V |
| Supply Voltage Range | :12V to 20V |
| Weight (kg) | 0.01 |
| Tariff No. | 85423990 |
| Current,InputBias | 200μA |
| Current,QuiescentSupply | 165μA |
| Current,RMSPhase | 20A |
| NumberofPins | 25 |
| PowerDissipation | 4.5W |
| SwitchingLoss | 495μJ |
| Temperature,Junction,Maximum | 150°C |
| Voltage,Breakdown,CollectortoEmitter | 600V |
| Voltage,Input | 20+0.3V |
| Voltage,Input,HighLevel | 20+0.3V |
| Voltage,Input,LowLevel | 20+0.3V |
| Voltage,Supply | 20V |
| Number of outputs | 3 |
| Output current | 20A |
| Multiplicity | 1 |
| Integrated circuit type | driver |
| Gross weight | 0.05 kg |
| Operating temperature | -40...150°C |
| Output voltage | 450V |
| Supply voltage | 12...20V DC |
| spg | 7 |
| Collective package [pcs] | 7 |
| Technology | MOSFET |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | IRAMY20UP60B |
