Manufacturer Part Number:

IRAUDAMP4A

OneIC Part Number:

176-IRAUDAMP4A

Manufacturer:

international rectifier

Description:

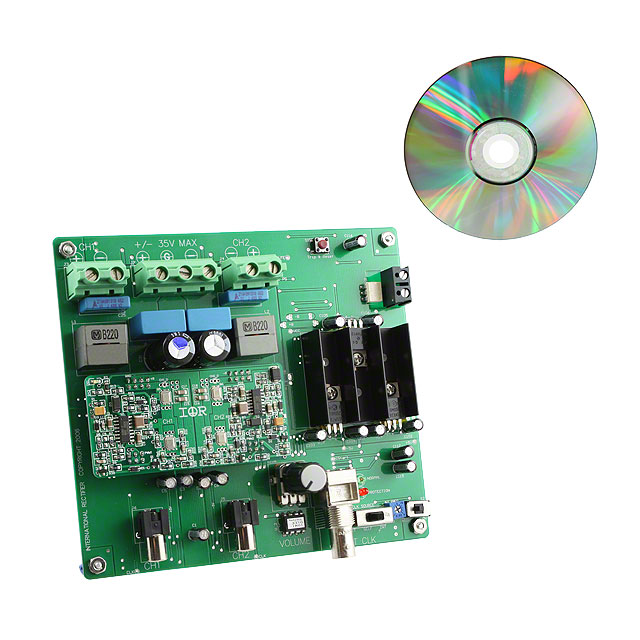

Reference Design Kit For Two-Channel 120W Half-Bridge Class-D Audio Power Amplifier

Customer Reference:

Datasheet:

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Type	Development Kit
Standard Package	Boxed
RoHS	No
Product	Development Tools
Tool Is For Evaluation Of	IRS20957
Operating Supply Voltage	25 V to 35 V
Description/Function	2 Channel Class D Audio Power Amplifier
Operating Supply Current	100 mA
Packaging	Bulk
Factory Pack Quantity	1
Life	New At Mouser
Board Type	Fully Populated
Utilized IC / Part	IRF6645, IRS20957
Output Type	2-Channel (Stereo)
Voltage - Supply	±25 V ~ 35 V
Supplied Contents	Board
Amplifier Type	Class D
Max Output Power x Channels @ Load	120W x 2 @ 4 Ohm
rohs	Contains lead / RoHS non-compliant
Silicon Manufacturer	:International Rectifier
Silicon Core Number	:IRS20957S
Kit Contents	:Demonstration Board for IRS20957S
Leaded Process Compatible	:No
Weight (kg)	0
Tariff No.	85423300

Documents & Media

RESOURCE TYPE	LINK
Datasheets	IRAUDAMP4A
Datasheets	IRF6645
Datasheets	IRS20957S
