Manufacturer Part Number:

LTC5507ES6#TRMPBF

OneIC Part Number:

201-LTC5507ES6-TRMPBF

Manufacturer:

Linear Technology

Description:

RF Power Detector 6-Pin TSOT-23 T/R

Customer Reference:

Datasheet:

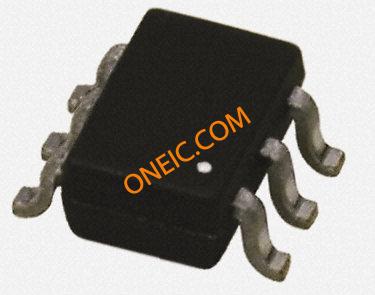

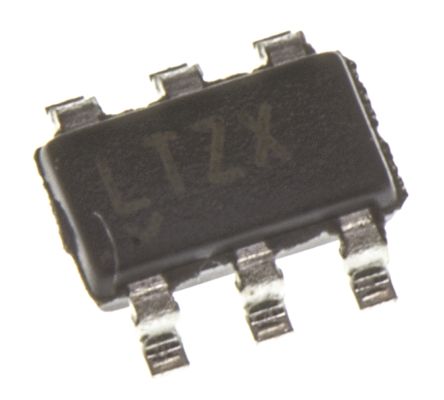

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Standard Package Name	SOT-23
EU RoHS	Compliant
Maximum Operating Temperature	85
Packaging	Tape and Reel
Supplier Package	TSOT-23
Minimum Operating Temperature	-40
Pin Count	6
Lead Shape	Gull-wing
RF Type	General Purpose
Input Range	-34dBm ~ 14dBm
Current - Supply	550µA
Voltage - Supply	2.7 V ~ 6 V
Standard Package	500
Frequency	100kHz ~ 1GHz
Package/Case	SOT-23-6 Thin, TSOT-23-6
rohs	Lead free / RoHS Compliant
Other Names	LTC5507ES6#TRMPBFDKR
Dimensions	2.9 x 1.75 x 0.9mm
Height	0.9mm
Length	2.9mm
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Package Type	TSOT-23
Width	1.75mm
Package / Case	SOT-23-6 Thin, TSOT-23-6
电压 - 电源	2.7 V ~ 6 V
输入范围	-34dBm ~ 14dBm
频率	100kHz ~ 1GHz
频率类型	General Purpose
电流 - 电源	550µA
最高工作频率	1000 MHz
最高工作温度	+85 °C
安装类型	表面贴装
高度	0.9mm
封装类型	TSOT-23
最低工作温度	-40 °C
宽度	1.75mm
尺寸	2.9 x 1.75 x 0.9mm
引脚数目	6
长度	2.9mm

Documents & Media

RESOURCE TYPE	LINK
Datasheets	LTC5507
