Manufacturer Part Number:

LTE-302-M

OneIC Part Number:

203-LTE-302-M

Manufacturer:

lite-on

Description:

IRED,940,SIDE LOOK,CLEAR

Customer Reference:

Datasheet:

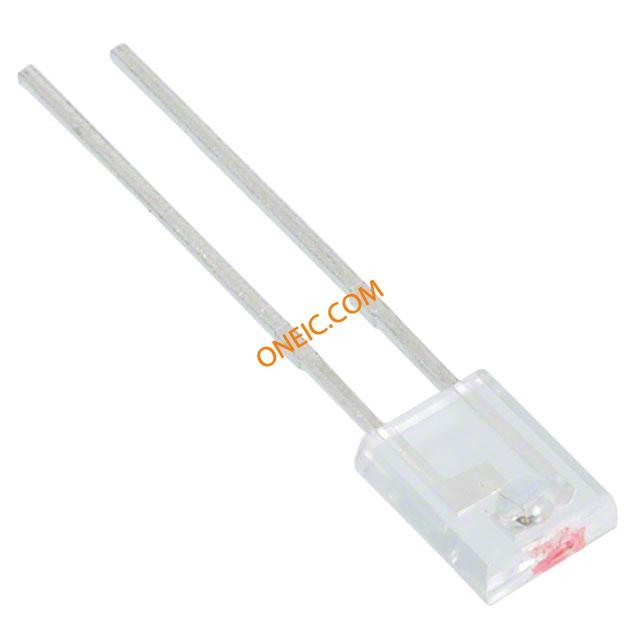

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Product Category	Infrared Emitters
RoHS	RoHS Compliant
Wavelength	940 nm
Beam Angle	40 deg
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Packaging	Bulk
Forward Voltage	1.2 V
Illumination Color	Infrared
Lens Shape	Circular
Mounting Style	Through Hole
Power Rating	75 mW
Factory Pack Quantity	1000
Viewing Angle	40 deg
Reverse Voltage	5
Mounting Orientation	Right Angle
Maximum Operating Temperature	85
Lens Appearance	Non Diffused
Viewing Angle	40
EU RoHS	Compliant
Maximum Forward Voltage per Color	1.6
Pin Count	2
Maximum Forward Current	50
Peak Wavelength	940
Lens Shape Type	Circular
High Brightness	No
Number of LEDs	1
Minimum Operating Temperature	-40
Type	IrLED
Maximum Power Dissipation	75
LED Material	GaAs
Voltage - Forward (Vf) Typ	1.2V
Orientation	Side View
Mounting Type	Through Hole
Radiant Intensity (Ie) Min @ If	0.662mW/sr @ 20mA
Standard Package	1,000
Current - DC Forward (If)	50mA
Package/Case	Radial, Side View
rohs	Lead free / RoHS Compliant
Maximum Forward Current	50 mA
视角	40°
电流 - DC 正向 (If)	50mA
取向	Side View
电压 - 正向 (Vf)（典型值）	1.2V
不同 If 时的辐射强度 (Ie)（最小值）	0.662mW/sr @ 20mA
装配类型	Through Hole
波长	940nm
Wavelength (pea	940 nm
Power dissip	75 mW
T(A) min	-40 °C
Package	SIDEVIEW
T(A) max	85 °C
Automotive	NO
Case type	EMITTER
Reverse voltage	5 V
Forward voltage	1.2 V
Emission Angle	40 Degree
Leadfree Defin	RoHS-conform
