lite-on

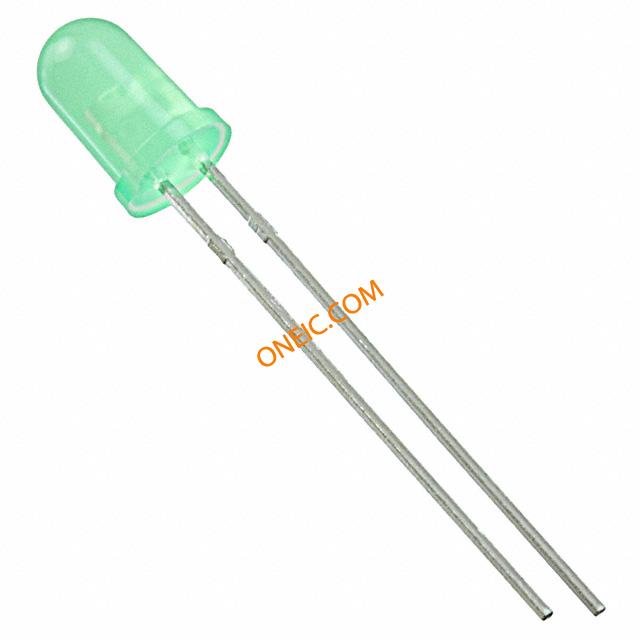

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Pin Count | 2 |
| Type | Uni-Color |
| Number of LEDs | 1 |
| Intensity | 3.7 mcd |
| Dominant Wavelength/Color Temperature | 569 nm |
| Peak Wavelength | 565 nm |
| Color | Green |
| Lens Appearance | Colored Diffused |
| Lens Shape Type | Circular |
| Viewing Angle | 50 ° |
| Mounting Orientation | Top Mount |
| Mounting | Through Hole |
| Standard Package | Bulk |
| Product Category | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| Illumination Color | Green |
| Luminous Intensity | 3.7 mcd |
| Wavelength/Color Temperature | 565 nm |
| Lens Color/Style | Diffused |
| Forward Current | 20 mA |
| Forward Voltage | 1.9 V |
| LED Size | T-1 3/4 |
| Packaging | Bulk |
| Lens Dimensions | 5 mm |
| Lens Shape | Dome |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 55 C |
| Mounting Style | Through Hole |
| Factory Pack Quantity | 1000 |
| Dominant Wavelength | 569 |
| Maximum Forward Current | 7 |
| PCB | 2 |
| Maximum Power Dissipation | 20 |
| Viewing Angle | 50 |
| Reverse Voltage | 5 |
| EU RoHS | Compliant |
| Maximum Forward Voltage per Color | 2.2 |
| Peak Wavelength | 565 |
| Minimum Operating Temperature | -55 |
| Lens Dimensions | 5x5x7.6 |
| Maximum Operating Temperature | 100 |
| Package Diameter | 5.85 |
| Package Height | 8.6 |
| High Brightness | No |
| Voltage - Forward (Vf) Typ | 1.9V |
| Mounting Type | Through Hole |
| Lens Style/Size | Round with Domed Top, 5mm |
| Wavelength - Dominant | 569nm |
| Millicandela Rating | 3.7mcd |
| Wavelength - Peak | 565nm |
| Current - Test | 2mA |
| Height | 8.60mm |
| Lens Type | Diffused, Tinted |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| Emission angle | 30 ° |
| Package | 5 MM |
| I(F) nominal | 2 mA |
| Case type | LOW POWER |
| Emitted colour | GREEN |
| Surface colour | DIFFUSED |
| Forward voltage | 1.9 V |
| Lumintenmin | 1.1 mcd |
| Lambda peak typ | 565 nm |
| Case size | 5 LxW |
| Automotive | NO |
| Reverse voltage | 5 V |
| Lambda domtyp | 569 nm |
| Leadfree Defin | RoHS-conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | LTL-307GLC |
