Manufacturer Part Number:

01000056Z

OneIC Part Number:

206-01000056Z

Manufacturer:

Littelfuse

Description:

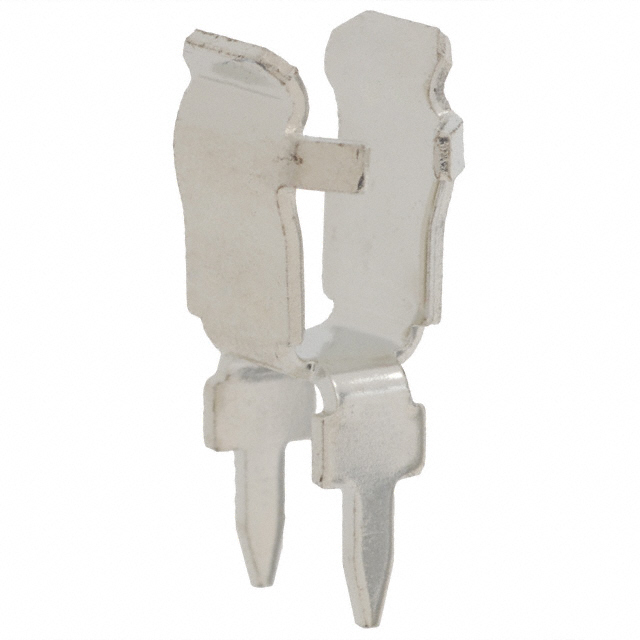

Fuse Clips ACS PC 5MM CLIP BRASS/TIN-PLTD

Customer Reference:

Datasheet:

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
RoHS	RoHS Compliant
Product	Fuse Clips
Type	Traditional
For Use With	5 mm Diameter
Body Material	Spring Brass
Current Rating	15 A
Fuse Size / Group	ATO
Height	10.7 mm
Length	4.1 mm
Mounting Style	Through Hole
Packaging	Bulk
Factory Pack Quantity	2000
Voltage Rating	250 V
Width	5.9 mm
Part # Aliases	01000056H 100056 576-01000056H
Product Length	4.1
EU RoHS	Compliant
Product Depth	5.9
Seated Plane Height	10.7
Product Height	8.2
Unit Pack	0
MOQ	1
Voltage	250V
Orientation	Horizontal
Mounting Type	PCB
Fuseholder Type	Clip
Fuse Size	5mm Dia
Termination Style	PC Pin
Contact Finish	Tin
Fuse Type	Cartridge
For Use With/Related Products	5mm Dia
Standard Package	2,000
Number of Circuits	1
Other Names	F3784
Contact Material	Spring Brass
rohs	Lead free / RoHS Compliant
Product Length (mm)	4.1 mm
Product Depth (mm)	5.9 mm
Product Height (mm)	8.2 mm
Voltage Rating VDC	:250V
Voltage Rating VAC	:250V
Fuse Current	:10A
Fuse Holder Type	:Cartridge Fuse Clip
Holder Terminals	:Pin
No. of Fuses	:1
Fuse Size Held	:5mm x 20mm, 5mm x 25mm, 5mm x 30mm
Weight (kg)	0
Tariff No.	85369010
Brand/Series	100Series
ContactPlating	Tin
Current,Rating	10(Max)A
Current,Ratings	20A(Max.)
ForUseWith	5mmDiameterFuses
Material,Body	SpringBrass
MountingType	Panel
Size	0.32x0.18x0.23in
Voltage,Rating	250Vac/dc
