Littelfuse

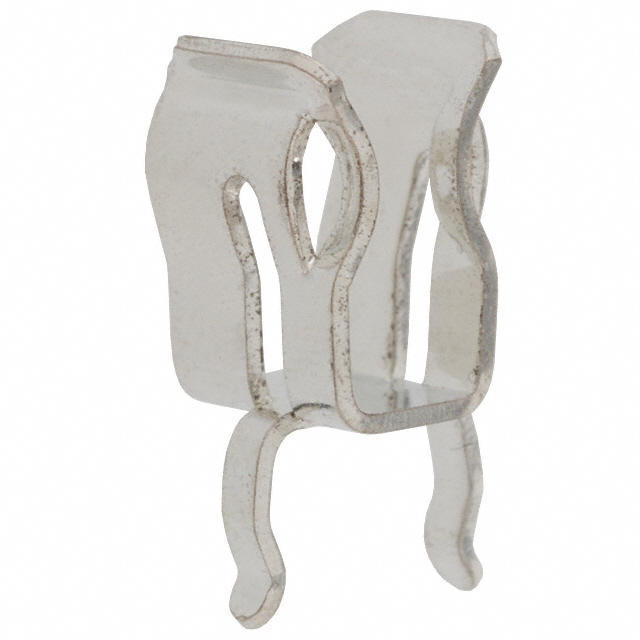

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| Product | Fuse Clips |
| Type | Fuse Clip |
| For Use With | 2AG, 5 mm Diameter |
| Body Material | Beryllium Copper |
| Current Rating | 10 A |
| Fuse Size / Group | 2AG |
| Height | 7.1 mm |
| Length | 4.8 mm |
| Mounting Style | Through Hole |
| Packaging | Bulk |
| Factory Pack Quantity | 2000 |
| Voltage Rating | 250 V |
| Width | 5.1 mm |
| Part # Aliases | 01110506H 576-01110506H |
| Unit Pack | 0 |
| MOQ | 1 |
| Voltage | 250V |
| Orientation | Horizontal |
| Mounting Type | PCB |
| Fuseholder Type | Clip |
| Fuse Size | 5mm Dia |
| Termination Style | PC Pin |
| Contact Finish | Tin |
| Fuse Type | Cartridge |
| For Use With/Related Products | 5mm Dia |
| Standard Package | 2,000 |
| Number of Circuits | 1 |
| Contact Material | Beryllium Copper |
| rohs | Lead free / RoHS Compliant |
| 系列 | 111 |
| 端接样式 | PC Pin |
| 电路数量 | 1 |
| 保险丝尺寸 | 5mm Dia |
| 额定电流 | 10A |
| 电压 | 250V |
| 装配类型 | PCB |
| 触点镀层 | 锡 |
| 适用于 | 0.2 x 0.8in 熔丝 |
| 夹材料 | 铍铜合金 |
| 高度 | 7.1mm |
| 熔断器类型 | 管式 |
| 长度 | 5.1mm |
| 宽度 | 6.9mm |
| 熔断器尺寸 | 5 x 20mm |
| Brand | Littelfuse |
| Contact Plating | Tin |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Fuse Blocks and Clips |
