Littelfuse

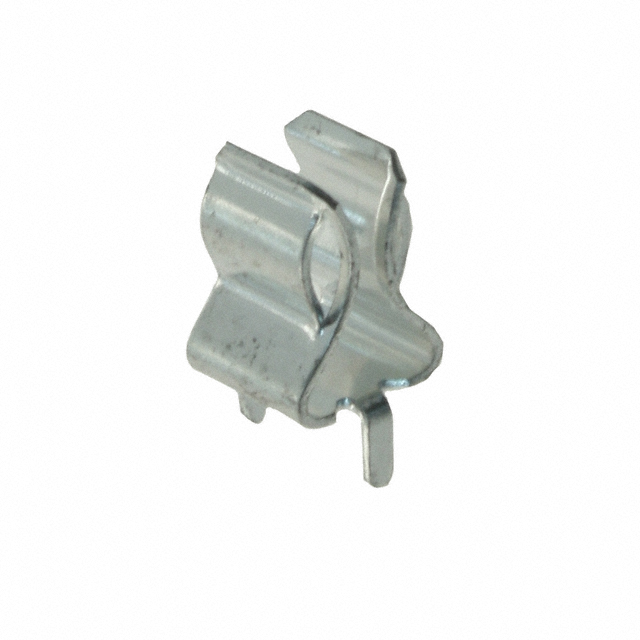

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| Product | Fuse Clips |
| Type | Traditional |
| For Use With | 1/4 in (3AG) Diameter |
| Body Material | Beryllium Copper |
| Current Rating | 30 A |
| Fuse Size / Group | 3AG |
| Height | 10.67 mm |
| Length | 7.11 mm |
| Mounting Style | Through Hole |
| Packaging | Bulk |
| Factory Pack Quantity | 1000 |
| Voltage Rating | 250 V |
| Width | 7.87 mm |
| Part # Aliases | 01220083H 576-01220083H |
| EU RoHS | Compliant |
| Voltage | 250V |
| Orientation | Horizontal |
| Mounting Type | PCB |
| Fuseholder Type | Clip |
| Fuse Size | 1/4" Dia (6.35mm) |
| Termination Style | PC Pin |
| Contact Finish | Silver |
| Fuse Type | Cartridge |
| For Use With/Related Products | 1/4" Dia |
| Standard Package | 1,000 |
| Number of Circuits | 1 |
| Other Names | F3782 |
| Contact Material | Beryllium Copper |
| rohs | Lead free / RoHS Compliant |
| Current,Ratings | 30A(Max.) |
| 系列 | 122 |
| 端接样式 | PC Pin |
| 电路数量 | 1 |
| 保险丝尺寸 | 1/4" Dia (6.35mm) |
| 额定电流 | 30A |
| 电压 | 250V |
| 装配类型 | PCB |
| Brand | Littelfuse |
| Contact Plating | Silver |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 102, 122 Series Datasheet |
