Littelfuse

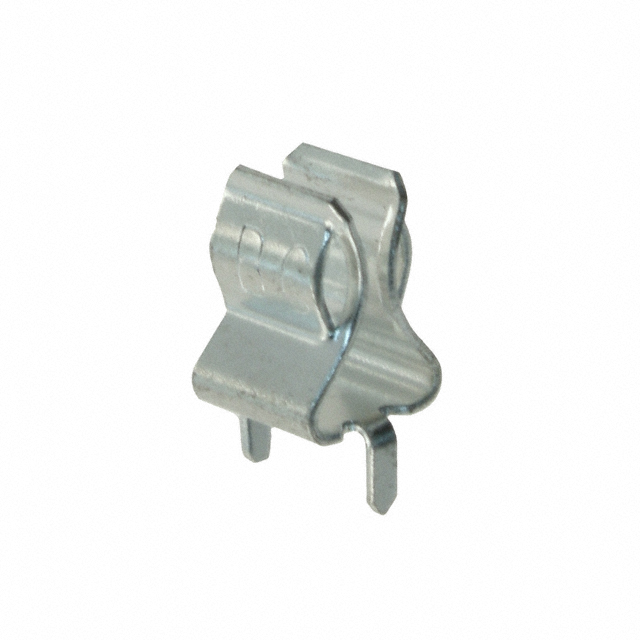

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| Product | Fuse Clips |
| Type | Traditional |
| For Use With | 1/4 in (3AG) Diameter |
| Body Material | Beryllium Copper |
| Current Rating | 30 A |
| Fuse Size / Group | 3AG |
| Height | 10.67 mm |
| Length | 7.11 mm |
| Mounting Style | Through Hole |
| Packaging | Bulk |
| Factory Pack Quantity | 1000 |
| Voltage Rating | 250 V |
| Width | 7.87 mm |
| Part # Aliases | 01220088H 576-01220088H |
| Voltage | 250V |
| Orientation | Horizontal |
| Mounting Type | PCB |
| Fuseholder Type | Clip |
| Fuse Size | 1/4" Dia (6.35mm) |
| Termination Style | PC Pin |
| Contact Finish | Tin |
| Fuse Type | Cartridge |
| For Use With/Related Products | 1/4" Dia |
| Standard Package | 1,000 |
| Number of Circuits | 1 |
| Other Names | F3783 |
| Contact Material | Beryllium Copper |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating VDC | :250V |
| Voltage Rating VAC | :250V |
| Fuse Current | :30A |
| Fuse Holder Type | :Cartridge Fuse Clip |
| Holder Terminals | :Through Hole |
| No. of Fuses | :1 |
| Fuse Size Held | :1/4" x 5/8" to 1/4" x 1-7/16" |
| Weight (kg) | 0 |
| Tariff No. | 85361010 |
| Brand/Series | 122Series |
| ContactPlating | Tin |
| Current,Rating | 30(Max)A |
| Current,Ratings | 15A(Max.) |
| ForUseWith | 1/4in.DiameterFuses |
| Material,Body | BerylliumCopper |
| MountingType | SnapOn |
| Size | 1/4in |
| Voltage,Rating | 250Vac/dc |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 102, 122 Series Datasheet |
