Littelfuse

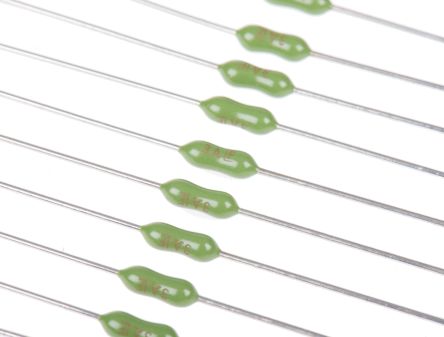

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Fuses |
| RoHS | RoHS Compliant |
| Product | Specialty Fuses |
| Product Type | PCB Mount Fuse |
| Body Style | Leaded Fuses |
| Current Rating | 3 A |
| Voltage Rating AC | 125 V |
| Fuse Type | Fast Blow |
| Fuse Size / Group | PICO II |
| Dimensions | 7.11 mm L x 2.41 mm D |
| Mounting Style | Through Hole |
| Termination Style | Axial |
| Series | 251 |
| Body Material | Epoxy Coated Cement |
| Case Diameter | 2.41 mm |
| Case Length | 7.11 mm |
| Indicator Style | Without Indicator |
| Interrupt Rating | 300 Amps |
| Operating Temperature Range | - 55 C to + 125 C |
| Packaging | Reel |
| Resistance | 0.029 Ohms |
| Factory Pack Quantity | 5000 |
| Type | PCB Mount Fuse |
| Voltage Rating | 125 V |
| Product Length | 7.11 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Product Diameter | 2.8(Max) |
| Mounting | Through Hole |
| Number of Terminals | 2 |
| Maximum AC Voltage Rating | 125 |
| Fuse Material | Ceramic |
| Acting | Very Fast |
| Current Rating | 3 |
| Minimum Operating Temperature | -55 |
| Unit Pack | 0 |
| MOQ | 1 |
| Breaking Capacity @ Rated Voltage | 50A AC, 300A DC |
| Mounting Type | Through Hole |
| Voltage Rating - AC | 125V |
| Approvals | CCC, CSA, PSE, QPL, TUV, UL |
| Size / Dimension | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) |
| Operating Temperature | -55°C ~ 125°C |
| Standard Package | 5,000 |
| Voltage Rating - DC | 125V |
| Response Time | Fast |
| DC Cold Resistance | 0.029 Ohm |
| Melting I²t | 1.19 |
| Package/Case | Axial |
| rohs | Lead free by exemption / RoHS Compliant |
| Other Names | F5565CT |
| Body Diameter | 2.8mm |
| Body Height | 7.11mm |
| Fuse Speed | FF |
| Lead Orientation | Axial |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Wire Diameter | 0.64mm |
| Wire Length | 27.78mm |
| 最高工作温度 | +125°C |
| 熔断器速度 | FF |
| 最低工作温度 | -55°C |
| 额定电流 | 3 A |
| 主体直径 | 2.8mm |
| 主体高度 | 7.11mm |
| 额定电压 | 125 V 交流/直流 |
| 主体材料 | 陶瓷 |
| 电线直径 | 0.64mm |
| 引线方向 | 轴向 |
| 电线长度 | 27.78mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 251, 253 Series |
