Littelfuse

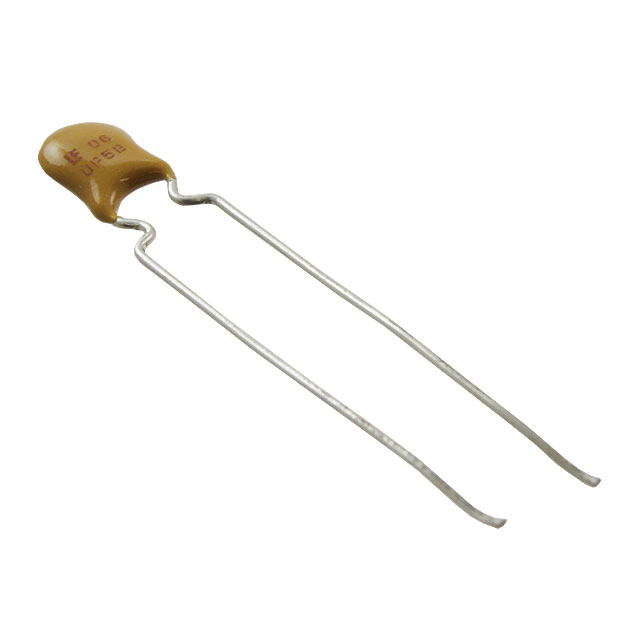

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Resettable Fuses |
| RoHS | RoHS Compliant |
| Current Rating | 40 A |
| Resistance | 0.14 Ohms |
| Maximum Voltage DC | 6 V |
| Hold Current | 1.2 A |
| Mounting Style | Through Hole |
| Termination Style | Radial |
| Trip Current | 2 A |
| Lead Spacing | 5.1 mm |
| Series | USBR |
| Operating Temperature Range | - 40 C to + 85 C |
| Current Rating (Max) | 40 A |
| Dimensions | 11.7 mm L x 3 mm H x 6.9 mm D |
| Maximum Voltage | 6 VDC |
| Packaging | Ammo |
| Factory Pack Quantity | 2000 |
| Type | PolyFuse Resettable PTC |
| Lead Diameter | 0.51 |
| Product Diameter | 6.9(Max) |
| Mounting | Through Hole |
| Maximum Current Rating | 40 |
| Typical Power Dissipation | 0.6(Max) |
| Application | Any USB Application|Computers Per... |
| Maximum Post Trip Resistance | 0.14 |
| Terminal Pitch | 5.1(Typ) |
| EU RoHS | Compliant |
| Maximum Voltage Rating | 6VDC |
| Minimum Initial Resistance | 0.065 |
| Minimum Operating Temperature | -40 |
| Wire Form | Inside Crimp Standoff |
| Maximum Operating Temperature | 85 |
| Maximum Trip Time | 0.5@8A |
| Seated Plane Height | 11.7(Max) |
| Product Depth | 3(Max) |
| Number of Terminals | 2 |
| Trip Current | 2 |
| Hold Current | 1.2 |
| Agency Approvals | cULus/TUV |
| Unit Pack | 0 |
| MOQ | 1 |
| Current - Max | 40A |
| Voltage - Max | 6V |
| Time to Trip | 0.5s |
| Standard Package | 2,000 |
| R Min/Max | 0.065 ~ 0.140 Ohm |
| Current - Hold (Ih) (Max) | 1.2A |
| Current - Trip (It) | 2A |
| Package/Case | Radial, Disc |
| rohs | Lead free / RoHS Compliant |
| Other Names | F5540CT |
| Current Rating - Max | 40 A |
| 系列 | POLYFUSE® USBR |
| 跳闸时间 | 0.5s |
| 电流 - 跳闸 (It) | 2A |
| 电流 - 保持 (Ih)（最大值） | 1.2A |
| 封装/外壳 | Radial, Disc |
| 电流 - 最大值 | 40A |
| R（最小/最大值） | 0.065 ~ 0.140 Ohm |
| 电压 - 最大值 | 6V |
| A | 6.9 |
| IEC-climate category | 40/85 (+85 °C @ 85% R.H, 1000 h) |
| Max current | 40 |
| B | 11.7 |
| Tripping current | 2 |
| Holding current @ 60°C | 0.88 |
| Time to trip | 0.5 s@ 8 A |
| Resistance max | 140 |
| Rated voltage | 6 |
| Temperature range | -40...+85 °C |
| Resistance min | 65 |
| Holding current @ 23°C | 1.2 |
| Output max | 0.6 |
| Diameter | 6.9 mm |
| Brand | Littelfuse |
| Pd - Power Dissipation | 600 mW |
| Height | 3 mm |
| Length | 11.7 mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | USBR Series |
