Littelfuse

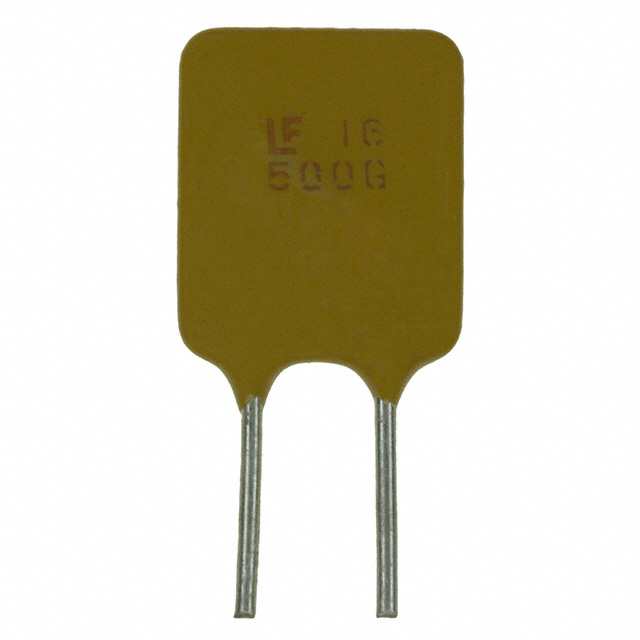

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Resettable Fuses |
| RoHS | RoHS Compliant |
| Current Rating | 100 A |
| Resistance | 0.034 Ohms |
| Maximum Voltage DC | 16 V |
| Hold Current | 5 A |
| Mounting Style | Through Hole |
| Termination Style | Radial |
| Trip Current | 8.5 A |
| Lead Spacing | 5.1 mm |
| Series | USBR |
| Operating Temperature Range | - 40 C to + 85 C |
| Current Rating (Max) | 100 A |
| Dimensions | 14.3 mm L x 10.4 mm W x 3 mm H |
| Maximum Voltage | 16 VDC |
| Packaging | Reel |
| Factory Pack Quantity | 2000 |
| Type | PolyFuse Resettable PTC |
| Lead Diameter | 0.81 |
| Mounting | Through Hole |
| Maximum Current Rating | 100 |
| Typical Power Dissipation | 2.6 |
| Application | Any USB Application|Computers Per... |
| Maximum Post Trip Resistance | 0.034 |
| Terminal Pitch | 5.1(Typ) |
| EU RoHS | Compliant |
| Maximum Voltage Rating | 16VDC |
| Minimum Initial Resistance | 0.015 |
| Minimum Operating Temperature | -40 |
| Wire Form | Straight |
| Product Length | 10.4(Max) |
| Maximum Operating Temperature | 85 |
| Maximum Trip Time | 2@25A |
| Seated Plane Height | 14.3(Max) |
| Product Depth | 3(Max) |
| Number of Terminals | 2 |
| Trip Current | 8.5 |
| Product Height | 14.3(Max) |
| Hold Current | 5 |
| Agency Approvals | cULus/TUV |
| Unit Pack | 0 |
| MOQ | 1 |
| Current - Max | 100A |
| Voltage - Max | 16V |
| Time to Trip | 2s |
| Standard Package | 2,000 |
| R Min/Max | 0.015 ~ 0.034 Ohm |
| Current - Hold (Ih) (Max) | 5A |
| Current - Trip (It) | 8.5A |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| Other Names | F5549CT |
| Current Rating - Max | 100 A |
| Holding Current | :5A |
| Tripping Current | :8.5A |
| Initial Resistance Max | :0.034ohm |
| Operating Voltage | :16V |
| PTC Fuse Case | :Radial Leaded |
| External Depth | :3mm |
| Fuse Terminals | :Radial Leaded |
| Weight (kg) | 0 |
| Tariff No. | 85361010 |
