Littelfuse

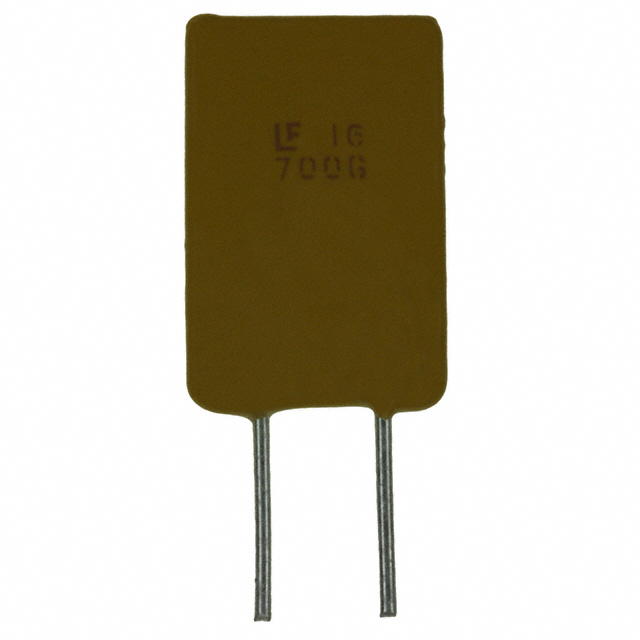

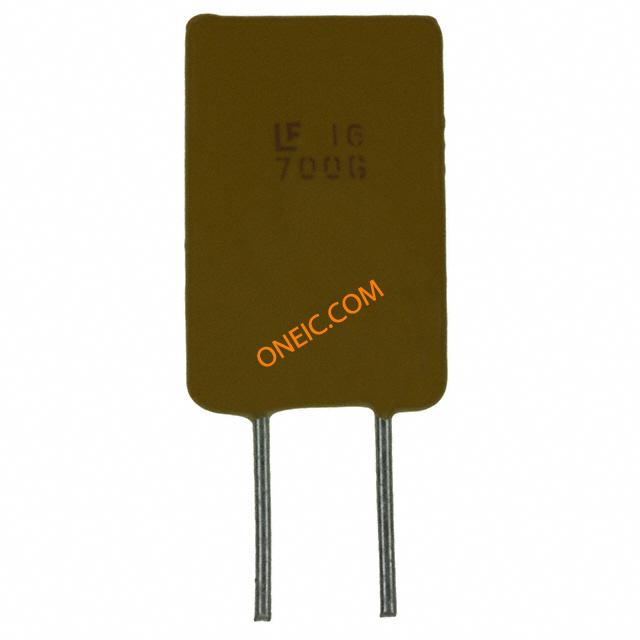

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Resettable Fuses |
| RoHS | RoHS Compliant |
| Current Rating | 100 A |
| Resistance | 0.02 Ohms |
| Maximum Voltage DC | 16 V |
| Hold Current | 7 A |
| Mounting Style | Through Hole |
| Termination Style | Radial |
| Trip Current | 11.9 A |
| Lead Spacing | 5.1 mm |
| Series | USBR |
| Operating Temperature Range | - 40 C to + 85 C |
| Current Rating (Max) | 100 A |

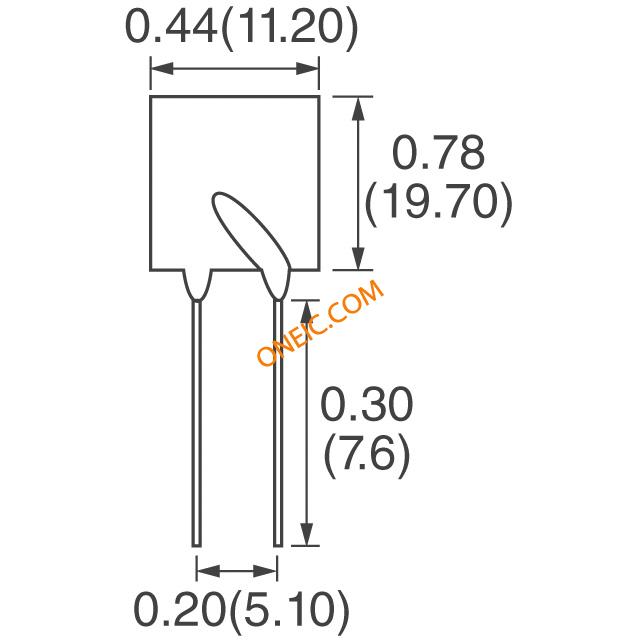

| Dimensions | 19.7 mm L x 11.2 mm W x 3 mm H |
| Maximum Voltage | 16 VDC |
| Packaging | Reel |
| Factory Pack Quantity | 1000 |
| Type | PolyFuse Resettable PTC |
| Lead Diameter | 0.81 |
| Mounting | Through Hole |
| Maximum Current Rating | 100 |
| Typical Power Dissipation | 3 |
| Application | Any USB Application|Computers Per... |
| Maximum Post Trip Resistance | 0.02 |
| Terminal Pitch | 5.1(Typ) |
| EU RoHS | Compliant |
| Maximum Voltage Rating | 16VDC |
| Minimum Initial Resistance | 0.0077 |
| Minimum Operating Temperature | -40 |
| Wire Form | Straight |
| Product Length | 11.2(Max) |
| Maximum Operating Temperature | 85 |
| Maximum Trip Time | 3.5@35A |
| Seated Plane Height | 19.7(Max) |
| Product Depth | 3(Max) |
| Number of Terminals | 2 |
| Trip Current | 11.9 |
| Product Height | 19.7(Max) |
| Hold Current | 7 |
| Agency Approvals | cULus/TUV |
| Unit Pack | 0 |
| MOQ | 1 |
| Current - Max | 100A |
| Voltage - Max | 16V |
| Time to Trip | 3.5s |
| Standard Package | 1,000 |
| R Min/Max | 0.008 ~ 0.020 Ohm |
| Current - Hold (Ih) (Max) | 7A |
| Current - Trip (It) | 11.9A |
| Package/Case | Radial |
| rohs | Lead free / RoHS Compliant |
| Other Names | F5550CT |
| Current Rating - Max | 100 A |
| DELETED | Compliant |
| Operating Temperature Max Deg. C | 85C |
| Operating Temperature Min Deg. C | -40C |
| Voltage Rating Max | 16VDC |
| Initial Resistance (Min) | 0.0077 Ohm |
| Post Trip Resistance (Max) | 0.02 Ohm |
| Power Dissipation (Typ) | 3 W |
| Trip Time (Max) | 3.5@35A s |
| Power Dissipation | 3 W |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 16R Series |
