Littelfuse

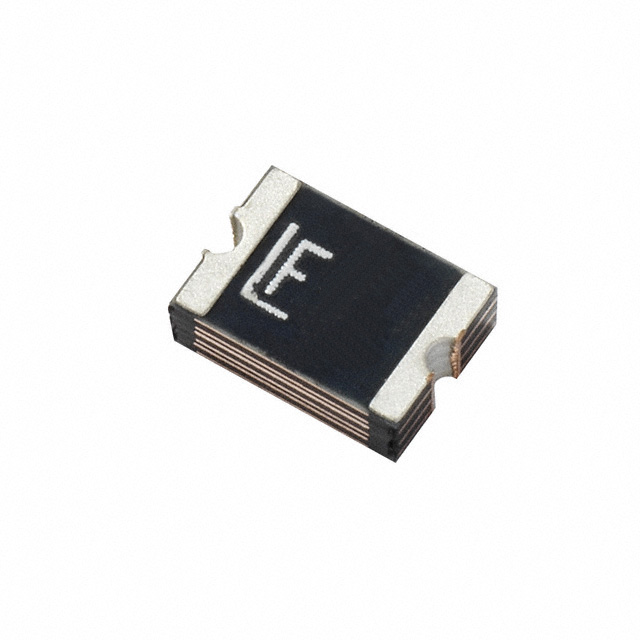

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| Packaging | Reel |
| Factory Pack Quantity | 1500 |
| Typical Power Dissipation | 0.8 |
| Product Length | 4.73(Max) |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Hold Current | 1.1 |
| Product Depth | 3.41(Max) |
| Maximum Voltage Rating | 24VDC |
| Number of Terminals | 2 |
| Trip Current | 1.95 |
| Maximum Post Trip Resistance | 0.2 |
| Maximum Current Rating | 20 |
| Application | Game Console Port Protection|PCI ... |
| Maximum Trip Time | 0.5@8A |
| Agency Approvals | cULus/TUV |
| Minimum Initial Resistance | 0.06 |
| Mounting | Surface Mount |
| Minimum Operating Temperature | -40 |
| Product Height | 1.07(Max) |
| Package/Case | 1812 |
| Current - Max | 20A |
| Voltage - Max | 24V |
| Time to Trip | 0.5s |
| Standard Package | 1,500 |
| R Min/Max | 0.060 ~ 0.200 Ohm |
| Current - Hold (Ih) (Max) | 1.1A |
| Current - Trip (It) | 1.95A |
| rohs | Lead free / RoHS Compliant |
| Other Names | F5632CT |
| Hold Current | 1.1 A |
| Dimensions | 4.73 mm L x 3.41 mm W x 1.25 mm H |
| Operating Temperature Range | - 40 C to + 85 C |
| Maximum Voltage | 24 VDC |
| Termination Style | SMD/SMT |
| Resistance | 200 mOhms |
| Trip Current | 1.95 A |
| Mounting Style | SMD/SMT |
| Package / Case | 1812 (4532 metric) |
| Current Rating - Max | 100 A |
| Type | PolyFuse Resettable PTC |
| 系列 | POLYFUSE® 1812L |
| 跳闸时间 | 0.5s |
| 电流 - 跳闸 (It) | 1.95A |
| 电流 - 保持 (Ih)（最大值） | 1.1A |
| 封装/外壳 | 1812 (4532 Metric), Concave |
| 电流 - 最大值 | 20A |
| R（最小/最大值） | 0.060 ~ 0.200 Ohm |
| 电压 - 最大值 | 24V |
| Brand | Littelfuse |
| Height | 1.25 mm |
| Length | 4.73 mm |
| I(MAX) | 100 A |
| Series | 1812L |
| I(HOLD) | 1.1 A |
| Version | SMD |
| Voltage | 24 V |
| Approvals | UR/TUV |
| Automotive | NO |
| Termination | SMT |
| Dimension | 1812 |
| Leadfree Defin | RoHS-conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 1812L Series |
