Littelfuse

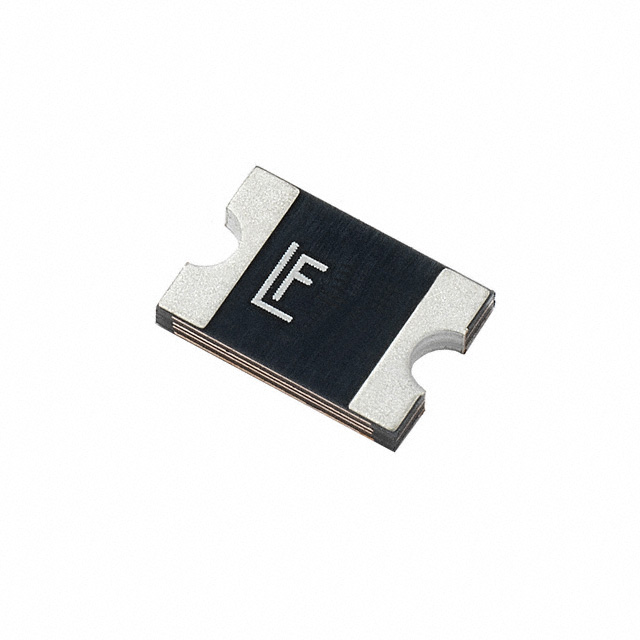

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Resettable Fuses |
| RoHS | RoHS Compliant |
| Current Rating | 10 A |
| Resistance | 0.95 Ohms |
| Maximum Voltage DC | 60 V |
| Hold Current | 0.75 A |
| Mounting Style | SMD/SMT |
| Termination Style | SMD/SMT |
| Trip Current | 1.5 A |
| Series | 2920L |
| Operating Temperature Range | - 40 C to + 85 C |
| Current Rating (Max) | 10 A |
| Dimensions | 6.73 mm L x 4.8 mm W x 1.2 mm H |
| Maximum Voltage | 60 VDC |
| Package / Case | 2920 (7351 metric) |
| Packaging | Reel |
| Factory Pack Quantity | 1000 |
| Type | PolyFuse Resettable PTC |
| Typical Power Dissipation | 1.5 |
| Product Length | 7.98(Max) |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Hold Current | 0.75 |
| Product Depth | 5.44(Max) |
| Maximum Voltage Rating | 60VDC |
| Number of Terminals | 2 |
| Trip Current | 1.5 |
| Maximum Post Trip Resistance | 0.95 |
| Maximum Current Rating | 10 |
| Application | Automotive Electronic Control Mod... |
| Maximum Trip Time | 0.3@8A |
| Agency Approvals | cULus/TUV |
| Minimum Initial Resistance | 0.3 |
| Mounting | Surface Mount |
| Minimum Operating Temperature | -40 |
| Product Height | 1.8(Max) |
| Package/Case | 2920 |
| Current - Max | 10A |
| Voltage - Max | 60V |
| Time to Trip | 0.3s |
| Standard Package | 1,000 |
| R Min/Max | 0.300 ~ 0.950 Ohm |
| Current - Hold (Ih) (Max) | 750mA |
| Current - Trip (It) | 1.5A |
| rohs | Lead free / RoHS Compliant |
| Other Names | F5633CT |
| Current Rating - Max | 10 A |
| 系列 | POLYFUSE® 2920L |
| 跳闸时间 | 0.3s |
| 电流 - 跳闸 (It) | 1.5A |
| 电流 - 保持 (Ih)（最大值） | 750mA |
| 封装/外壳 | 2920 (7351 Metric), Concave |
| 电流 - 最大值 | 10A |
| R（最小/最大值） | 0.300 ~ 0.950 Ohm |
| 电压 - 最大值 | 60V |
| 保持电流 | 0.75 A |
| 终端材料 | 电镀锡/铅铜 |
| 最大电流 | 10 A |
| 跳闸电流 | 1.5A |
| 最高工作温度 | +85°C |
| 高度 | 1.8mm |
| 功率耗散 | 1.5W |
| 最低工作温度 | -40°C |
| 额定电压 | 60 V 直流 |
| 工作温度范围 | -40 → +85 °C |
| 宽度 | 5.44mm |
| 尺寸 | 7.98 x 5.44 x 1.8mm |
| 最小电阻 | 0.3Ω |
| 长度 | 7.98mm |
| 最大电阻 | 0.95Ω |
| Brand | Littelfuse |
| Height | 1.2 mm |
| Length | 6.73 mm |
| Pd - Power Dissipation | 1.5 W |
| I(MAX) | 40 A |
| I(HOLD) | 0.75 A |
| Voltage | 60 V |
| Automotive | NO |
| Termination | SMT |
| Dimension | 2920 |
| Leadfree Defin | RoHS-conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 2920L Series |
| Datasheets | 2920L Series |
