Manufacturer Part Number:

30R700UMR

OneIC Part Number:

206-30R700UMR

Manufacturer:

Littelfuse

Description:

Resettable Fuses PTC 30V 7A POLY RADIAL LEADS

Customer Reference:

Datasheet:

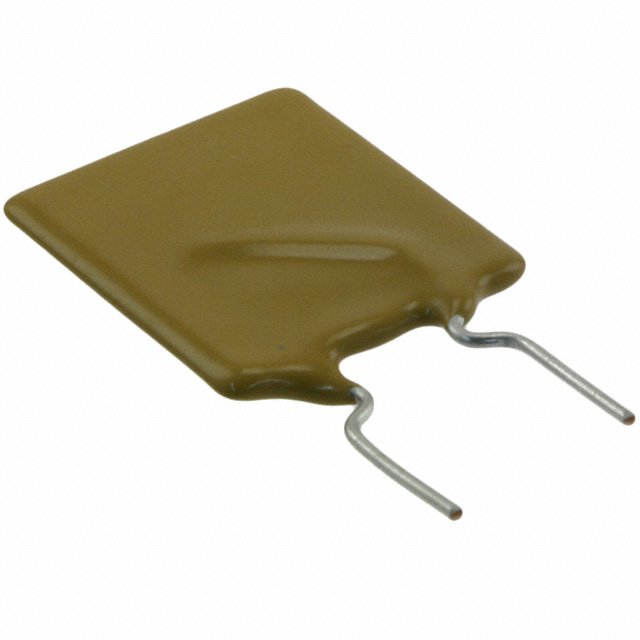

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Product Category	Resettable Fuses
RoHS	RoHS Compliant
Current Rating	40 A
Resistance	0.03 Ohms
Maximum Voltage DC	30 V
Hold Current	7 A
Mounting Style	Through Hole
Termination Style	Radial
Trip Current	14 A
Lead Spacing	10.2 mm
Series	30R
Operating Temperature Range	- 40 C to + 85 C
Current Rating (Max)	40 A
Dimensions	28.6 mm L x 19.1 mm W x 3 mm H
Maximum Voltage	30 VDC
Packaging	Ammo
Factory Pack Quantity	1000
Type	PolyFuse Resettable PTC
Current - Max	40A
Voltage - Max	30V
Time to Trip	17.5s
Standard Package	1,000
R Min/Max	0.005 ~ 0.030 Ohm
Current - Hold (Ih) (Max)	7A
Current - Trip (It)	14A
Package/Case	Radial
rohs	Lead free / RoHS Compliant
Other Names	F5552CT
Current Rating - Max	40 A
系列	POLYFUSE® 30R
跳闸时间	17.5s
电流 - 跳闸 (It)	14A
电流 - 保持 (Ih)（最大值）	7A
封装/外壳	Radial
电流 - 最大值	40A
R（最小/最大值）	0.005 ~ 0.030 Ohm
电压 - 最大值	30V
Brand	Littelfuse
Height	3 mm
Length	28.6 mm
Pd - Power Dissipation	3.8 W

Documents & Media

RESOURCE TYPE	LINK
Datasheets	30R Series
