Littelfuse

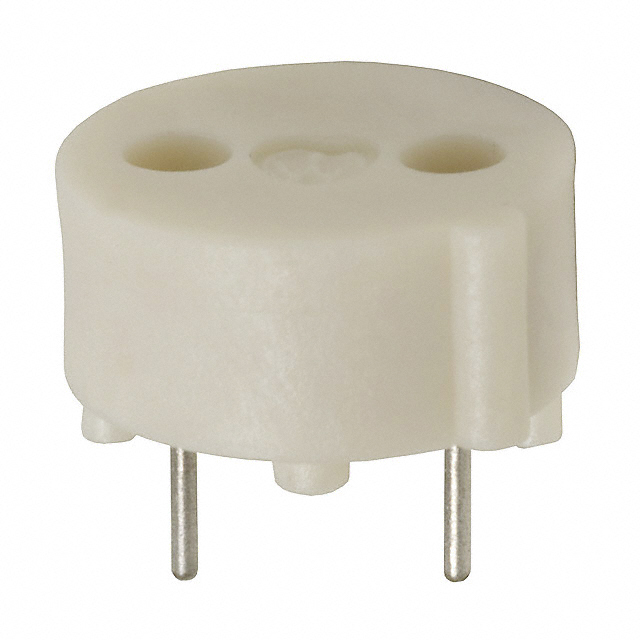

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Fuse Holders |
| RoHS | RoHS Compliant |
| Product | Fuse Holders |
| Current Rating | 6.3 A |
| Voltage Rating | 250 V |
| Number of Poles | 1 |
| Series | 560 |
| Mounting Style | Through Hole, Vertical |
| Color | White |
| Illumination | No |
| Packaging | Bulk |
| Factory Pack Quantity | 500 |
| Part # Aliases | 5600000100 576-5600000100 |
| Diameter | 9.5mm |
| Matchcode | FUHSUBR5 |
| Cap | extraY/N |
| Current rating | 6.3A |
| Voltage rating | 250V |
| Unit Pack | 500 |
| Standard Leadtime | 14 weeks |
| MOQ | 1 |
| Touchprotection | NoY/N |
| Height | 8.6mm |
| Leadfree Defin. | RoHS-conform |
| Automotive | NO |
| Pitch | 5.1mm |
| Fuse Version | TR5 |
| Cont.material | Cu |
| Termination | THT |
| Type | HOLDER |
| Mounting | PCB |
| Voltage | 250V |
| Orientation | Vertical |
| Mounting Type | PCB |
| Fuseholder Type | Holder |
| Fuse Size | Radial 0.2" (5.08mm) pitch |
| Termination Style | PC Pin |
| Contact Finish | Tin |
| Fuse Type | Radial |
| For Use With/Related Products | TE5, TR5 |
| Standard Package | 500 |
| Number of Circuits | 1 |
| Contact Material | Copper Alloy |
| rohs | Lead free / RoHS Compliant |
| Body Material | PA, Thermoplastic |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 4.3 mm |
| Voltage Rating V DC | :250V |
| Voltage Rating V AC | :250V |
| Fuse Current | :6.3A |
| Fuse Holder Type | :Fuse Holder |
| Holder Terminals | :Solder Pin |
| No. of Fuses | :1 |
| Fuse Size Held | :TE5, TR5 |
| Fuse Size Metric | :8.5mm x 8mm |
| Fuse Size Imperial | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Fuse Size Code | :TE5, TR5 |
| Weight (kg) | 0.048 |
| Tariff No. | 85361010 |
| Multiplicity | 1 |
| Fuses application | miniature fuses |
| Maximum current | 6.3A |
| Rated voltage | 250V |
| Fuse size | TE5, TR5 |
| Gross weight | 0.92 g |
| Fuse accessories type | fuse holder |
| Collective package [pcs] | 500 |
| spg | 500 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 560 Series |
