Littelfuse

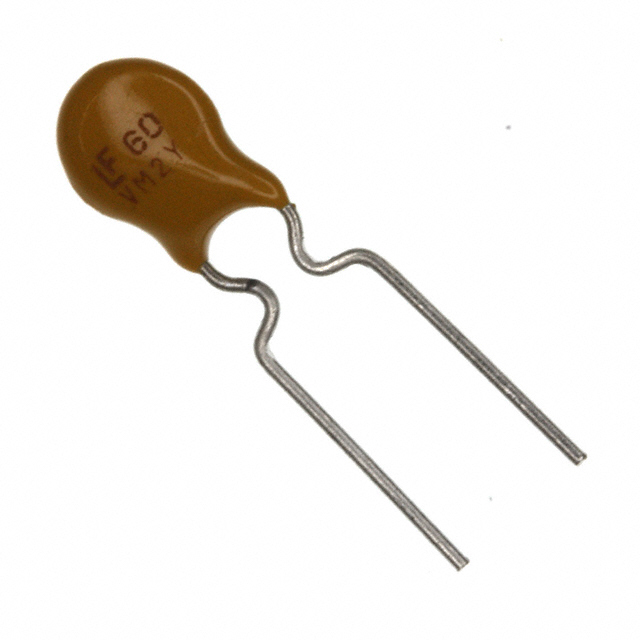

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Resettable Fuses |
| RoHS | RoHS Compliant |
| Current Rating | 40 A |
| Resistance | 8 Ohms |
| Maximum Voltage DC | 60 V |
| Hold Current | 0.17 A |
| Mounting Style | Through Hole |
| Termination Style | Radial |
| Trip Current | 0.34 A |
| Lead Spacing | 5.1 mm |
| Series | 60R |
| Operating Temperature Range | - 40 C to + 85 C |
| Current Rating (Max) | 40 A |
| Dimensions | 12.7 mm L x 3.1 mm H x 7.4 mm D |
| Maximum Voltage | 60 VDC |
| Packaging | Ammo |
| Factory Pack Quantity | 2000 |
| Type | PolyFuse Resettable PTC |
| Unit Pack | 0 |
| MOQ | 1 |
| Current - Max | 40A |
| Voltage - Max | 60V |
| Standard Package | 2,000 |
| Current - Hold (Ih) (Max) | 170mA |
| Package/Case | Radial, Disc |
| rohs | Lead free / RoHS Compliant |
| Other Names | F5558CT |
| Current Rating - Max | 40 A |
| 系列 | POLYFUSE® 60R |
| 电流 - 保持 (Ih)（最大值） | 170mA |
| 封装/外壳 | Radial, Disc |
| 电流 - 最大值 | 40A |
| 电压 - 最大值 | 60V |
| A | 7.4 |
| IEC-climate category | 40/85 (+85 °C @ 85% R.H, 1000 h) |
| C | 5.1 |
| B | 12.7 |
| Tripping current | 0.34 |
| Holding current @ 60°C | 0.11 |
| Time to trip | 3 s@ 0.85 A |
| Max current | 40 |
| Resistance max | 8 |
| Rated voltage | 60 |
| Temperature range | -40...+85 °C |
| Resistance min | 3.3 |
| Holding current @ 23°C | 0.17 |
| Output max | 0.48 |
| Diameter | 7.4 mm |
| Brand | Littelfuse |
| Pd - Power Dissipation | 480 mW |
| Height | 3.1 mm |
| Length | 12.7 mm |
| I(MAX) | 40 A |
| Termination | THT |
| I(HOLD) | 0.17 A |
| Pitch | 5.1 mm |
| Version | Radial |
| Voltage | 60 V |
| Approvals | UR/TUV |
| Automotive | NO |
| Dimension | 7x13 |
| Leadfree Defin | RoHS-conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 60R Series |
