Manufacturer Part Number:

81000000005

OneIC Part Number:

206-81000000005

Manufacturer:

Littelfuse

Description:

Fuse Holders ACS HOLDER 810 250V

Customer Reference:

Datasheet:

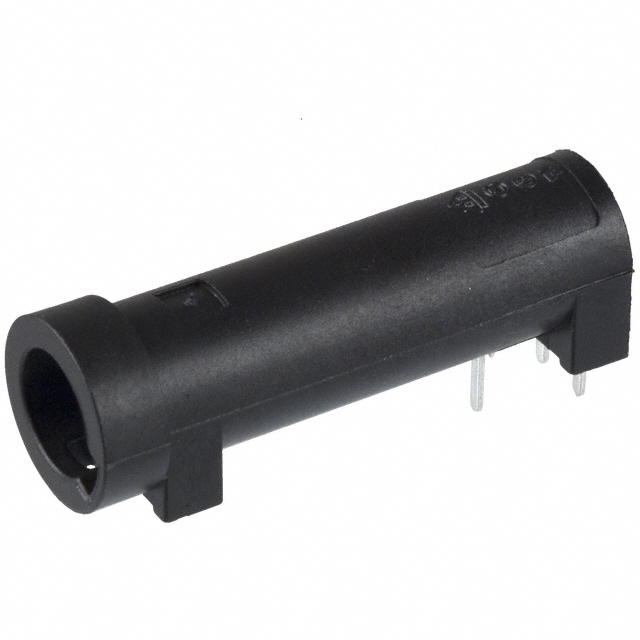

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Product Category	Fuse Holders
RoHS	RoHS Compliant
Product	Fuse Holders
Current Rating	16 A
Voltage Rating	250 V
Number of Poles	1
Series	810
Mounting Style	Through Hole, Horizontal
Operating Temperature Range	- 25 C to + 70 C
Color	Black
Illumination	No
Packaging	Bulk
Factory Pack Quantity	100
Voltage	250V
Orientation	Horizontal
Mounting Type	PCB
Fuseholder Type	Holder
Fuse Size	5mm x 20mm, 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm)
Termination Style	PC Pin
Contact Finish	Tin
Fuse Type	Cartridge
For Use With/Related Products	5mm x 20mm, 3AG
Standard Package	100
Number of Circuits	1
Contact Material	Copper Alloy
rohs	Lead free / RoHS Compliant
Operating Temp Range	-25C to 70C
Operating Temperature Max Deg. C	70C
Type	Fuse Holder
Operating Temperature Min Deg. C	-25C
Product Length (mm)	45.7 mm
Product Depth (mm)	15 mm
Product Height (mm)	15 mm
Voltage Rating VDC	:250V
Voltage Rating VAC	:250V
Fuse Current	:16A
Fuse Holder Type	:Cartridge Fuse Holder
Holder Terminals	:Solder Lug
No. of Fuses	:1
Fuse Size Held	:5mm x 20mm, 6.3mm x 32mm
Weight (kg)	0
Tariff No.	85366930

Documents & Media

RESOURCE TYPE	LINK
Datasheets	810, 815, 816 Series
