Littelfuse

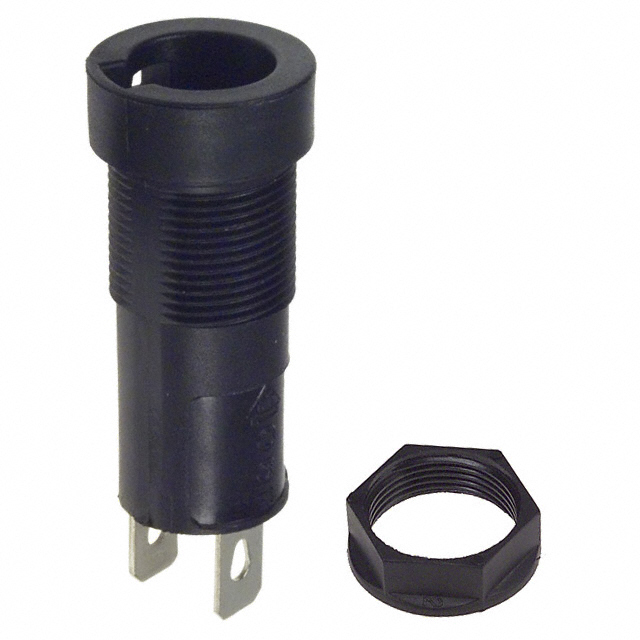

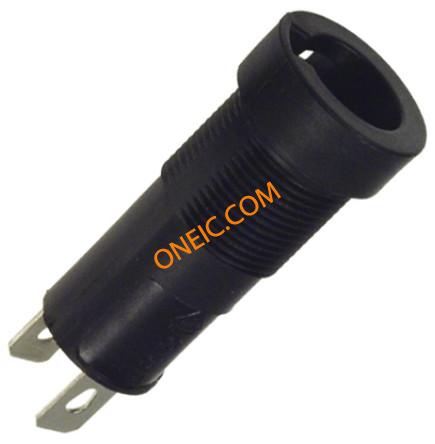

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Fuse Holders |
| RoHS | RoHS Compliant |
| Product | Fuse Holders |
| Current Rating | 16 A |
| Voltage Rating | 250 V |
| Number of Poles | 1 |
| Series | 820 |
| Mounting Style | Panel |
| Operating Temperature Range | - 25 C to + 70 C |
| Color | Black |
| Illumination | No |
| Packaging | Bulk |
| Factory Pack Quantity | 100 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 70 |
| Product Diameter | 15 |
| Product Height | 32 |
| Minimum Operating Temperature | -25 |
| Type | Fuse Holder |
| Automotive | NO |
| Matchcode | FUH5X20SAFETHTHORPANEL |
| Approvals | VDE |
| Current rating | 6.3A |
| Voltage rating | 250V |
| Unit Pack | 100 |
| Standard Leadtime | 14 weeks |
| MOQ | 100 |
| Cap | includedY/N |
| Width | 32mm |
| Fuse Version | 5X20 |
| Cont.material | Tin |
| Termination | SOLDERLUG |
| Mounting | Panel |
| Leadfree Defin. | RoHS-conform |
| Voltage | 250V |
| Mounting Type | Panel Mount |
| Fuseholder Type | Holder |
| Fuse Size | 5mm x 20mm |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Contact Finish | Tin |
| Fuse Type | Cartridge |
| For Use With/Related Products | 5mm x 20mm |
| Standard Package | 100 |
| Number of Circuits | 1 |
| Contact Material | Copper Alloy |
| rohs | Lead free / RoHS Compliant |
| Body Material | PA, Thermoplastic |
| Cap Style | Slotted |
| International Protection Rating | IP40 |
| Protection Category | PC2 |
| Operating Temp Range | -25C to 70C |
| Operating Temperature Max Deg. C | 70C |
| Operating Temperature Min Deg. C | -25C |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 32 mm |
| Voltage Rating V DC | :250V |
| Voltage Rating V AC | :250V |
| Fuse Current | :16A |
| Fuse Holder Type | :Enclosed Bayonet Style |
| Holder Terminals | :Quick Connect |
| No. of Fuses | :1 |
| Fuse Size Held | :5mm x 20mm |
| Fuse Size Metric | :5mm x 20mm |
| Fuse Size Imperial | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, SEMKO, VDE |
| Approval Category | :UL Recognised |
| Bezel Diameter | :15mm |
| Breakdown Voltage Vbr | :4kV |
| Colour | :Black |
| Contact Resistance | :5mohm |
| Double Flat Panel Cut-out Diameter | :12.7mm |
| External Length / Height | :32mm |
| Flammability Rating | :UL94V-0 |
| Height | :32mm |
| IP / NEMA Rating | :IP40 |
| Insulation Resistance | :1000Mohm |
| MSL | :- |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-25°C |
| Power Dissipation Pd | :4W |
| Single Flat Panel Cut-out Diameter | :12.7mm |
| Terminal Type | :Quick Connect |
| Termination Method | :Tab |
| Weight (kg) | 0.025 |
| Tariff No. | 85361010 |
| Voltage Rating VDC | :250V |
| Voltage Rating VAC | :250V |
| Fuses application | tube fuses |
| Rated current | 6.3A |
| Multiplicity | 1 |
| Fuse size | 5x20mm |
| Associated items | 83500000005 |
| Gross weight | 4.22 g |
| Operating temperature | -25...70°C |
| Rated voltage | 250V |
| Fuse accessories type | fuse holder |
| Collective package [pcs] | 100 |
| spg | 100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | 820,835,837 |
