Littelfuse

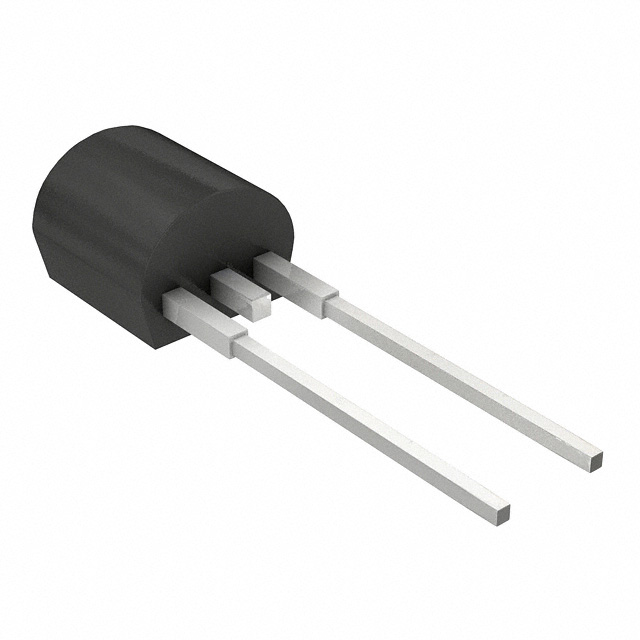

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Supplier Package | TO-92 |
| Standard Package Name | TO-92 |
| Maximum Breakover Voltage | 125 |
| Repetitive Peak Reverse Voltage | 90(Min) |
| Maximum Operating Temperature | 125 |
| Maximum Holding Current | 150 |
| Mounting | Through Hole |
| Repetitive Peak Off-State Current | 0.005 |
| Surge Current Rating | 20 |
| Peak On-State Voltage | 1.5@1A |
| Repetitive Peak Forward Blocking Voltage | 90(Min) |
| Package Height | 4.98(Max) |
| Packaging | Bulk |
| EU RoHS | Compliant |
| Maximum Breakover Current | 0.01 |
| Package Width | 3.68(Max) |
| PCB | 2 |
| Package Length | 4.73(Max) |
| Minimum Operating Temperature | -40 |
| Pin Count | 2 |
| Lead Shape | Through Hole |
| Unit Pack | 2000 |
| MOQ | 2000 |
| Current - Breakover | 10µA |
| Voltage - Breakover | 110 ~ 125V |
| Supplier Device Package | TO-92 |
| Current - Peak Output | 1A |
| Standard Package | 2,000 |
| Current - Hold (Ih) (Max) | 150mA |
| Package/Case | TO-226-2, TO-92-2 (TO-226AC) |
| rohs | Lead free by exemption / RoHS Compliant |
| Factory Pack Quantity | 2000 |
| Product Category | Sidacs |
| Rated Repetitive Off-State Voltage VDRM | +/- 90 V |
| Off-State Leakage Current @ VDRM IDRM | 5 uA |
| Holding Current (Ih Max) | 150 mA |
| Series | Kxxxzy |
| On-State RMS Current - It RMS | 1 A |
| Operating Junction Temperature | - 40 C to + 125 C |
| Mounting Style | Through Hole |
| Non Repetitive On-State Current | 16.7 A, 20 A |
| Breakover Voltage VBO | 110 V to 125 V |
| Minimum Operating Temperature | - 40 C |
| Package / Case | TO-92-3 |
| On-State Voltage | 1.5 V |
| Current Rating | 1 A |
| Breakover Current IBO Max | 10 uA |
| Maximum Operating Temperature | + 85 C |
| RoHS | RoHS Compliant |
| Type | SIDAC |
| 电压 - 导通 | 110 ~ 125V |
| 电流 - 击穿 | 10µA |
| 封装/外壳 | TO-226-2, TO-92-2 (TO-226AC) |
| 电流 - 保持 (Ih)（最大值） | 150mA |
| 电流 - 峰值输出 | 1A |
| Holding Current Ih Max | 150 mA |
| Brand | Littelfuse |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Packing Options |
| Datasheets | Kxxxzy Silicon AC Diode |
