Littelfuse

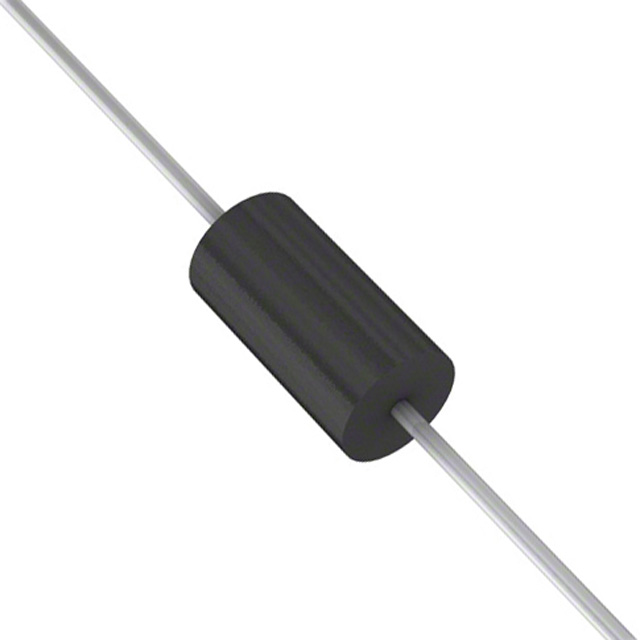

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Supplier Package | DO-15X |
| Standard Package Name | DO-15 |
| Maximum Breakover Voltage | 280 |
| Repetitive Peak Reverse Voltage | 200(Min) |
| Maximum Operating Temperature | 125 |
| Maximum Holding Current | 150 |
| Mounting | Through Hole |
| Package Diameter | 3.81(Max) |
| Repetitive Peak Off-State Current | 0.005 |
| Surge Current Rating | 20 |
| Peak On-State Voltage | 1.5@1A |
| Repetitive Peak Forward Blocking Voltage | 200(Min) |
| Packaging | Bulk |
| EU RoHS | Compliant |
| Maximum Breakover Current | 0.01 |
| PCB | 2 |
| Package Length | 7.62(Max) |
| Minimum Operating Temperature | -40 |
| Pin Count | 2 |
| Unit Pack | 1000 |
| MOQ | 1000 |
| Current - Breakover | 10µA |
| Voltage - Breakover | 240 ~ 280V |
| Supplier Device Package | DO-15 |
| Current - Peak Output | 1A |
| Standard Package | 1,000 |
| Current - Hold (Ih) (Max) | 150mA |
| Package/Case | DO-204AC, DO-15, Axial |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1000 |
| Product Category | Sidacs |
| Rated Repetitive Off-State Voltage VDRM | +/- 200 V |
| Off-State Leakage Current @ VDRM IDRM | 5 uA |
| Holding Current (Ih Max) | 150 mA |
| Series | Kxxxzy |
| On-State RMS Current - It RMS | 1 A |
| Operating Junction Temperature | - 40 C to + 125 C |
| Mounting Style | Through Hole |
| Non Repetitive On-State Current | 16.7 A, 20 A |
| Breakover Voltage VBO | 240 V to 280 V |
| Minimum Operating Temperature | - 40 C |
| Package / Case | DO-15X-2 |
| On-State Voltage | 1.5 V |
| Current Rating | 1 A |
| Breakover Current IBO Max | 10 uA |
| Maximum Operating Temperature | + 85 C |
| RoHS | RoHS Compliant |
| 电压 - 导通 | 240 ~ 280V |
| 电流 - 击穿 | 10µA |
| 封装/外壳 | DO-204AC, DO-15, Axial |
| 电流 - 保持 (Ih)（最大值） | 150mA |
| 电流 - 峰值输出 | 1A |
| Holding Current Ih Max | 150 mA |
| Brand | Littelfuse |
| I (TRMS) eff | 1 A |
| Package | DO15 |
| Automotive | NO |
| U(RRM) | 200 V |
| Leadfree Defin | RoHS-conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | Packing Options |
| Datasheets | Kxxxzy Silicon AC Diode |
