Littelfuse

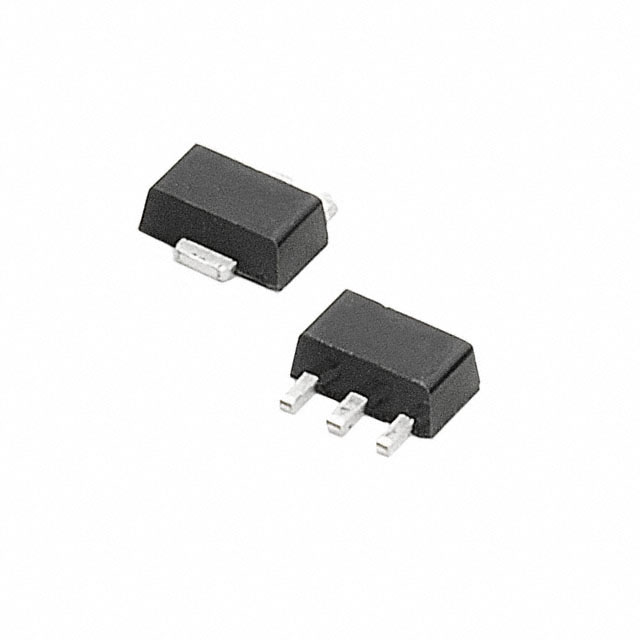

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| Breakdown Voltage | 4.6 V |
| On-State Voltage | 1 V |
| Rated Repetitive Off-State Voltage VDRM | 3.5 V |
| On-State RMS Current (It RMS) | 700 mA |
| Holding Current (Ih Max) | 5 mA |
| Package / Case | SOT-89 |
| Packaging | Reel |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | SMD/SMT |
| Off-State Leakage Current @ VDRM IDRM | 100 uA |
| Product | LED Protector |
| Factory Pack Quantity | 1000 |
| Standard Package Name | SOT-89 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Supplier Package | SOT-89 |
| Minimum Operating Temperature | -40 |
| Pin Count | 4 |
| Lead Shape | Flat |
| Matchcode | PLED5HT |
| Package | SOT89 |
| Unit Pack | 1000 |
| Standard Leadtime | 12 weeks |
| MOQ | 1000 |
| I(GT) max | 700mA |
| Leadfree Defin. | RoHS-conform |
| Automotive | NO |
| Voltage - Clamping | 5.2V |
| Technology | Mixed Technology |
| Voltage - Working | 3.5V |
| Supplier Device Package | SOT-89-3 |
| Applications | LED Protection |
| Standard Package | 1,000 |
| Number of Circuits | 1 |
| Other Names | F3574TR |
| Package/Case | TO-243AA |
| rohs | Lead free by exemption / RoHS Compliant |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Industrial |
| Rad Hardened | No |
| Package Type | SOT-89 |
| No. of Circuits | :1 |
| Thyristor Type | :LED Protector |
| Thyristor Case | :SOT-89 |
| No. of Pins | :3 |
| Breakover Voltage Vbo Max | :5.2V |
| Peak Off-State Voltage, Vdrm | :3.5V |
| Weight (kg) | 0 |
| Tariff No. | 85423990 |
| Case | SOT89 |
| Mounting | SMD |
| Gross weight | 0.17 g |
| Diode type | transil |
| Breakdown voltage | 5V |
| Multiplicity | 1 |
| Features of semiconductor devices | open LED protector |
| Collective package [pcs] | 1000 |
| spg | 1000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | PLED5HT SOT 89 Series |
| Datasheets | PLED Open LED Protection Expanded |
