Manufacturer Part Number:

Q6035P5

OneIC Part Number:

206-Q6035P5

Manufacturer:

Littelfuse

Description:

Triacs 600V 35A 50-50-50mA

Customer Reference:

Datasheet:

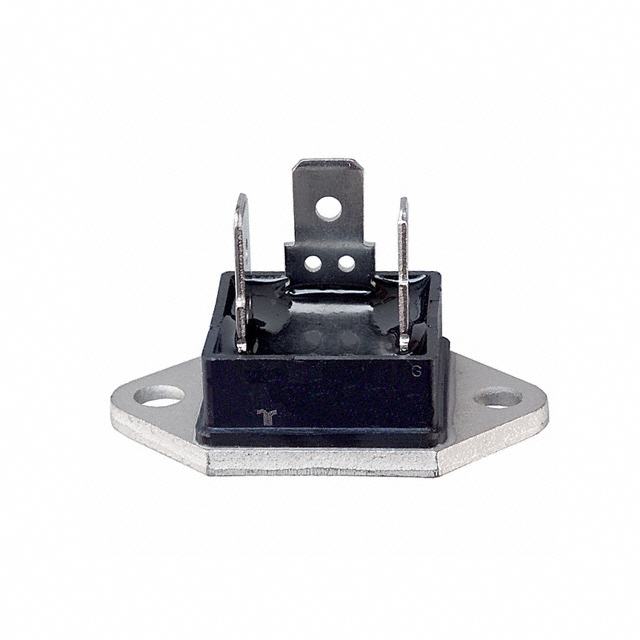

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Repetitive Peak Reverse Voltage	600(Min)
Mounting	Screw
Surge Current Rating	350
Maximum Gate Trigger Voltage	2.75
Package Width	23(Max)
PCB	3
Type	TRIAC
Peak On-State Voltage	1.5
EU RoHS	Compliant
Maximum Holding Current	50
Repetitive Peak Forward Blocking Voltage	600(Min)
Minimum Operating Temperature	-25
Supplier Package	TO-3 FastPak
Standard Package Name	TO-3 FastPak
Maximum Operating Temperature	125
Package Length	39.2(Max)
Operating Junction Temperature	-25 to 125
Pin Count	3
Maximum Gate Trigger Current	50
Package Height	11.1(Max)
Repetitive Peak Off-State Current	0.1
Tab	Tab
Unit Pack	160
MOQ	160
rohs	Lead free / RoHS Compliant
Factory Pack Quantity	160
Product Category	Triacs
Rated Repetitive Off-State Voltage VDRM	600 V
Gate Trigger Current	50 mA, 120 mA
Off-State Leakage Current @ VDRM IDRM	100 uA
Holding Current (Ih Max)	50 mA
Series	Qxx35xx
On-State RMS Current - It RMS	35 A
Mounting Style	Through Hole
Non Repetitive On-State Current	300 A, 350 A
Packaging	Bulk
Minimum Operating Temperature	- 40 C
Package / Case	Fastpak-3
On-State Voltage	1.5 V
Maximum Operating Temperature	+ 125 C
RoHS	RoHS Compliant
Breakover Current IBO Max	350 A
Gate Trigger Current (Max)	50 mA
Gate Trigger Voltage (Max)	2.75 V
Operating Temp Range	-25C to 125C
Package Type	TO-3 FastPak
Peak Surge on-state current (Max)	350 A
Peak Repeat Off Current	0.1
Repetitive Peak off-state volt	600 V
Off-State Voltage	600 V
Operating Temperature Classification	Commercial
On State Voltage(max)	1.5 V
Hold Current	50 mA
Rad Hardened	No
Gate Trigger Voltage	2.75 V
Peak Repetitive Off-State Voltage, Vdrm	:600V
Gate Trigger Current Max (QI), Igt	:50mA
On State RMS Current IT(rms)	:35A
Peak Non Rep Surge Current Itsm 50Hz	:300A
Holding Current Max Ih	:50mA
No. of Pins	:3
Weight (kg)	0.032
Tariff No.	85411000

Documents & Media

RESOURCE TYPE	LINK
Datasheets	Qxx3(0,5)xx(Hx) Series
Datasheets	Triacs (0.8A - 35A)
