Littelfuse

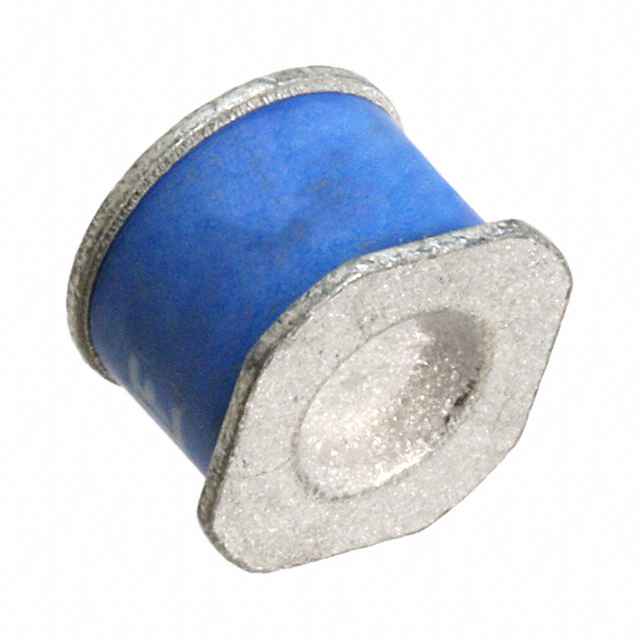

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Product Category | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors |
| RoHS | RoHS Compliant |
| Peak Pulse Current | 10 kA |
| DC Breakover Voltage (Nominal) | 90 V |
| Number of Electrodes | 2 |
| Series | SL1411A |
| Termination Style | Solder Pad |
| Failsafe Protection Y/N | N |
| Packaging | Reel |
| Dimensions | 6 mm D x 8 mm L |
| Mounting Style | SMD/SMT |
| Factory Pack Quantity | 500 |
| Technology | Gas Plasma Arrester |
| Voltage Rating | 90 V |
| Product Length | 6 |
| Typical AC Discharge Current@1s@ | 10 |
| Maximum Operating Temperature | 100 |
| Maximum Impulse Sparkover Voltage@1KV/s | 600 |
| Product Height | 8 |
| Product Depth | 8 |
| Mounting | Surface Mount |
| Number of Terminals | 2 |
| Failsafe Protection | Yes |
| Maximum Impulse Sparkover Voltage@100V/s | 500 |
| EU RoHS | Compliant |
| Agency Approvals | UL |
| Typical Impulse Life@10/1000us | 50 |
| Lead Pitch | 5.4 |
| Minimum Operating Temperature | -40 |
| Maximum Capacitance@1MHz | 1.5 |
| Maximum DC Holdover Voltage | 50 |
| Typical Impulse Discharge Current@8/20us@10Times | 10 |
| Unit Pack | 0 |
| MOQ | 1 |
| Impulse Discharge Current (8/20us) | 10kA |
| Mounting Type | Surface Mount |
| Fail Short | No |
| Number of Poles | 2 |
| Voltage - DC Spark Over (Nom) | 90V |
| Standard Package | 500 |
| Current - AC Discharge (Nom) | 10A |
| Package/Case | 2-SMD Cylinder Square End |
| rohs | Lead free / RoHS Compliant |
| Other Names | F5676CT |
| Operating Temperature Max Deg. C | 100C |
| Operating Temperature Min Deg. C | -40C |
| Product Length (mm) | 6 mm |
| Product Depth (mm) | 8 mm |
| Product Height (mm) | 8 mm |
| Impulse Sparkover Voltage (Max)@100V/s | 500 |
| Impulse Sparkover Voltage (Max)@1KV/s | 600 |
| Impulse Discharge Current (Typ)@8/20us@10Times | 10 |
| Capacitance (Max)@1MHz | 1.5 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | SL1411A Series |
