nxp semiconductors

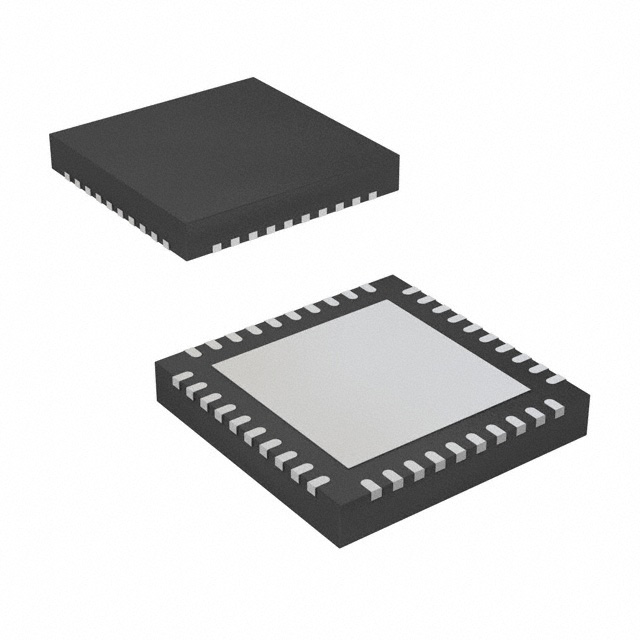

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| Operating Frequency | 13.56 MHz |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Supply Current | 12 uA |
| Package / Case | QFN-40 |
| Packaging | Tray |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 25 C |
| Mounting Style | SMD/SMT |
| Factory Pack Quantity | 490 |
| Type | Near Field Transmission Module, Read / Write |
| Standard Package Name | QFN |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Package Height | 0.95(Max) |
| Mounting | Surface Mount |
| PCB | 40 |
| Package Width | 6.1(Max) |
| Supplier Package | HVQFN EP |
| Package Length | 6.1(Max) |
| Minimum Operating Temperature | -40 |
| Pin Count | 40 |
| Lead Shape | No Lead |
| Features | ISO14443-A, ISO14443-B |
| Supplier Device Package | 40-HVQFN (6x6) |
| RF Type | Read / Write |
| Frequency | 13.56MHz |
| Standard Package | 490 |
| Package/Case | 40-VFQFN Exposed Pad |
| rohs | Lead free / RoHS Compliant |
| Package Type | HVQFN EP |
| Operating Temperature (Max) | 125C |
| Operating Temperature (Min) | -40C |
| Operating Temperature Classification | Automotive |
| Rad Hardened | No |
| Frequency Max | :13.56MHz |
| RFID IC Type | :Reader |
| Programmable Memory | :- |
| RF IC Case Style | :QFN |
| No. of Pins | :40 |
| Supply Voltage Min | :2.7V |
| Supply Voltage Max | :5.5V |
| Series | :PN532 |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Frequency Range | :13.56MHz |
| Supply Voltage Range | :2.7V to 5.5V |
| Weight (kg) | 0.00022 |
| Tariff No. | 85423990 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | PN532/C1 |
