Manufacturer Part Number:

H3DK-F AC/DC24-240

OneIC Part Number:

232-H3DK-F-AC-DC24-240

Manufacturer:

Omron

Description:

TWIN AC/DC 24-240V SPDT

Customer Reference:

Datasheet:

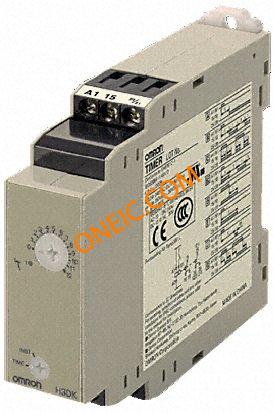

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Product Attributes

Type	Description
Function	Repeat Cycle, Twin Timer
Timing Adjustment Method	Screwdriver Slot
Mounting Type	DIN Rail
Relay Type	Integrated
Termination Style	Screw Terminal
Output Type	Mechanical Relay
Timing Initiate Method	Input Voltage
Delay Time	0.1 Sec ~ 1200 Hrs
Circuit	SPDT (1 Form C)
Standard Package	1
Voltage - Supply	24 ~ 240VAC/DC
Contact Rating @ Voltage	5A @ 250VAC
Current Maximum	5 A
Depth	100mm
Length	89.4mm
Maximum Operating Temperature	+55°C
Maximum Voltage	24 V dc, 250 V ac
Minimum Operating Temperature	-20°C
Mode of Operation	Flicker OFF Start, Flicker ON Start
Number of Timer Functions	Multi Function
Supply Voltage	24 → 240 V ac/dc
Switch Configuration	SPDT
Time Increment	Hours, Minutes, Seconds
Time Range	0.1 → 1.2 s, 1 → 12 h, 1 → 12 min, 1 → 12 s, 10 → 120 h, 10 → 120 min, 10 → 120 s, 100 → 1200 h
Width	22.5mm
rohs	Compliant
RoHS	RoHS Compliant
Product Range	:OMRON - H3DK-F Series
Timer Functions	:Flicker-Off Start / Flicker-On Start
Time Min	:0.1s
Time Max	:1200h
No. of Timing Ranges	:8
Timer Output	:Solid State
Supply Voltage Max	:240V
Current Rating Nom	:5A
Connection / Termination	:Screw Terminals
SVHC	:No SVHC (20-Jun-2013)
Adjustment Type	:Screwdriver Slot
Contact Configuration	:SPDT
Contact Current AC Max	:5A
Contact Current DC Max	:5A
Contact Voltage AC Max	:250V
Contact Voltage DC Max	:24V
Delay Time Range	:0.1s to 1200h
External Depth	:100.2mm
External Length / Height	:79mm
External Width	:22.5mm
Nom Input Voltage	:240V
Operating Temperature Max	:55°C
Operating Temperature Min	:-20°C
Relay Mounting	:DIN Rail
Series	:H3DK
Supply Voltage Min	:24V
Supply Voltage Range	:24V AC to 240V AC, 24V DC to 240V DC
Timing Adjustment	:Screwdriver Slot
Type	:Solid State
Weight (kg)	0.11
