Omron Industrial

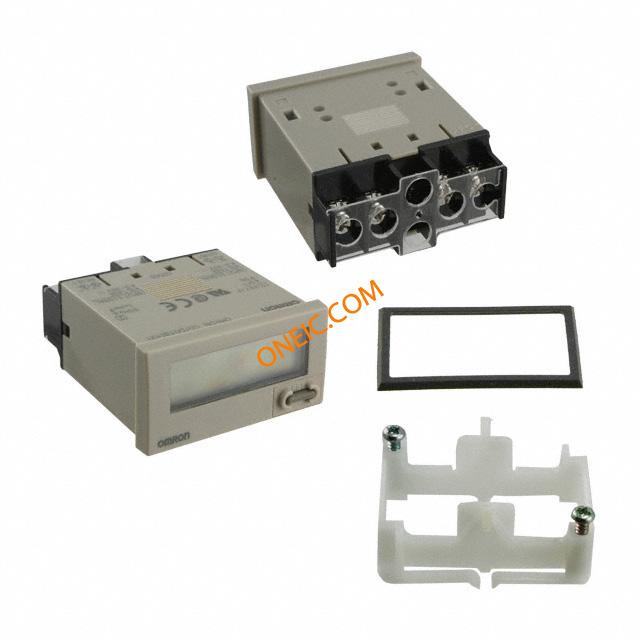

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
| Type | Description |
|---|---|
| Type | Totalizer |
| Minimum Operating Temperature | -10 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 55 |
| Industry Aliases | H7EC-NV |
| Subcategory | Misc Products |
| Lead Time | 56 Days |
| Reset | External, Front Panel |
| Display Type | LCD - Black Characters |
| Number Of Characters Per Row | 8 |
| Ingress Protection | IP66 (Face), IP20 (Terminal) |
| Weight | * |
| Mounting Type | Panel Mount |
| Display Characters - Height | 0.338" (8.60mm) |
| Operating Mode | Up |
| Termination Style | Screw Terminal |
| Count Rate | 30Hz, 1kHz |
| Input Type | Voltage |
| Operating Temperature | -10°C ~ 55°C |
| Voltage - Supply | None Required (Battery Included) |
| Panel Cutout Dimensions | Rectangular - 45.00mm x 22.20mm |
| Standard Package | 1 |
| rohs | Lead free / RoHS Compliant |
| Connection Type | Screw |
| Count Direction | Up |
| Digit Height | 8.6 mm |
| Display Range | 0 → 99999999 |
| Maximum Count Frequency | 1kHz |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -10°C |
| Number of Digits | 8 |
| Reset Method | Manual |
| Factory Pack Quantity | 1 |
| Product Category | Counters & Tachometers |
| Operating Temperature Range | - 10 C to + 55 C |
| Series | H7EC |
| Product | Counters |
| Voltage | 3 V Lithium Battery |
| Part # Aliases | 3262765 |
| RoHS | RoHS Compliant |
| No. of Digits / Alpha | :8 |
| Supply Voltage Range | :- |
| Power Consumption | :300mW |
| Panel Cutout Height | :22.2mm |
| Panel Cutout Width | :45mm |
| Counting Speed | :1kHz |
| Operating Temperature Min | :-10°C |
| Operating Temperature Max | :55°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Count Speed Max | :1kHz |
| Display Scan Rate Max | :1kHz |
| Display Scan Rate Min | :30Hz |
| External Depth | :48.5mm |
| External Length / Height | :24mm |
| External Width | :48mm |
| Weight (kg) | 0.088 |
| Tariff No. | 90291000 |
| Resetting method | electrical, locking possibility, finger activated |
| Mounting | on panel |
| Body colour | grey |
| Display height 1 | 8.6mm |
| spg | 10 |
| Electrical input 1 parameters | 4...30VDC |
| Operating temperature | -10...55°C |
| Input 1 type | NPN, PNP, voltage |
| Body dimensions | 48 x 24 x 48.5mm |
| Mounting hole diameter | 45 x 22.2mm |
| Multiplicity | 1 |
| Electrical connection | screw terminals |
| Associated items | Y92F-75, Y92F-77 |
| Gross weight | 0.08 kg |
| Control circuit | see |
| Sealing | IP66 |
| Display | LCD |
| Counter type | electronical |
| Power supply | int. battery, 7 years service life |
| Counting range | 99999999 |
| Type of counted signal | pulses |
| Collective package [pcs] | 10 |
| Max IN1 counting frequency | 1000Hz |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets | H7E Series |
